Laser & Process Water Chiller

  • CWUP-05

    Model CWUP-05
    Dimensions 39 x 27 x 23cm (L x W x H)
    Standard CE, REACH and RoHS

상세정보

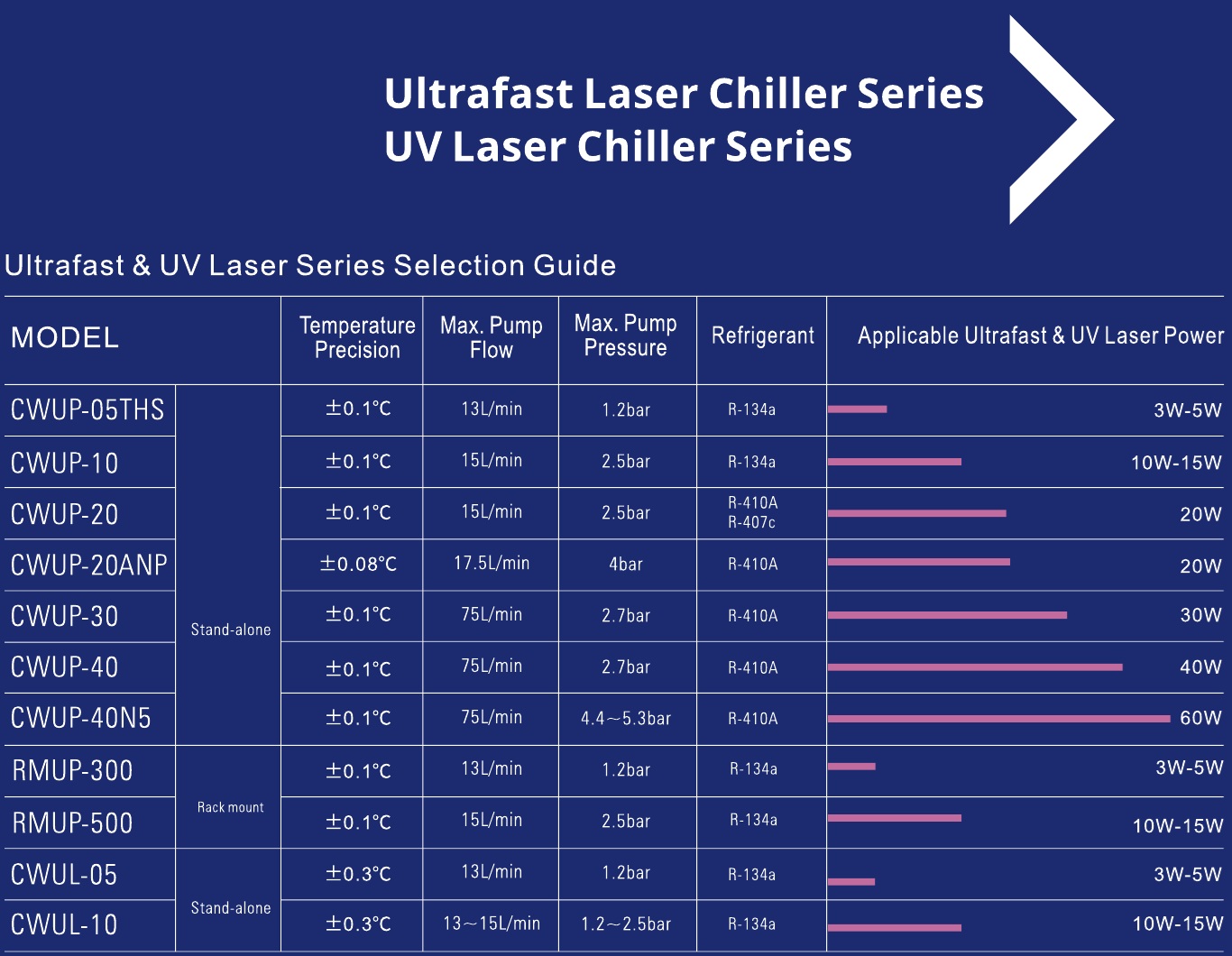

CWUP Series.jpg

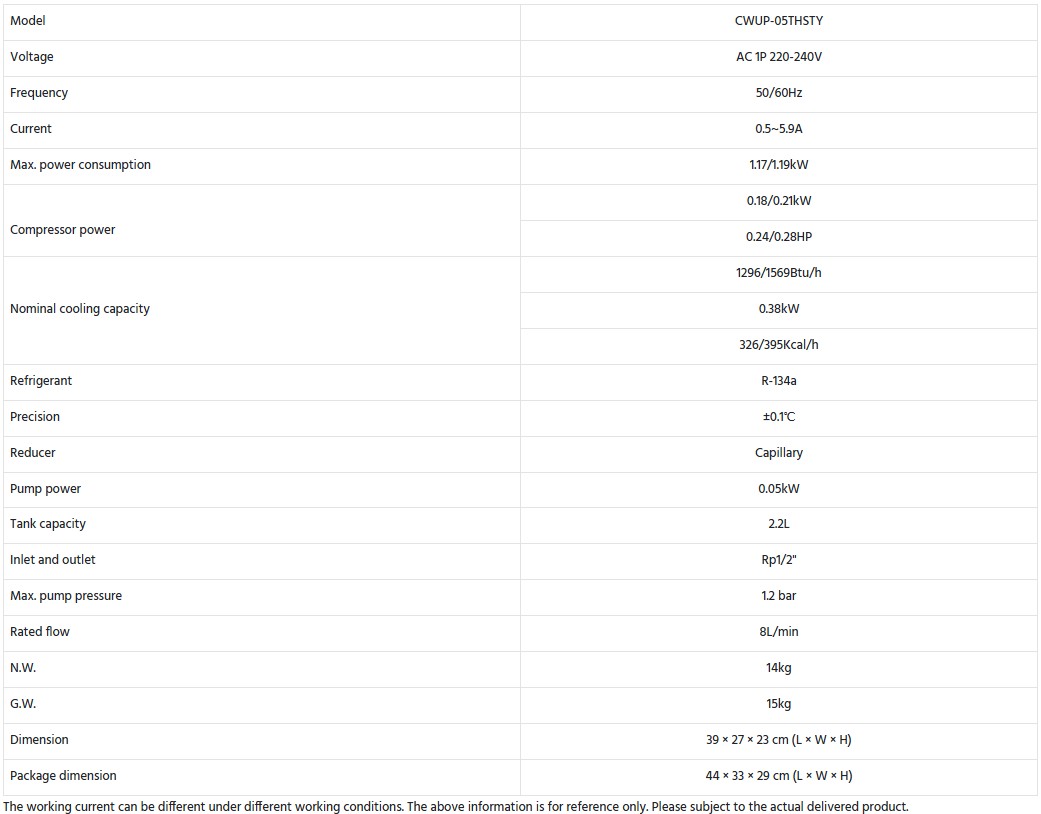

Product Parameters

CWUP-05 model.jpg


Product Features

Intelligent functions

* Low tank water level detecting

* Low water flow rate detecting

* Over water temperature detecting

* Heating of the coolant water at low ambient temperature


Self-check display

* 12 types of alarm codes


Easy routine maintenance

* Toolless maintenance of dustproof filter screen

* Quick-replaceable optional water filter


Communication function

* Equipped with RS485 Modbus RTU protocol  include sounds, words

Optional Items



 Heater





Filter





 US standard plug / EN standard plug



Product Details
Ventilation Distance

Ventilation Distance of Chiller CWUP-05THS

Certificate
Certificate of Laser Chiller CWUP-05THS
Product Working Principle

Product Working Principle of Laser Chiller CWUP-05THS

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the industrial chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
