PRODUCT

제품소개

Laser & Process Water Chiller

  • CW-7800

    Model CW-7800
    Dimensions 155 x 80 x 135cm (L x W x H)
    Standard CE, REACH and RoHS

상세정보

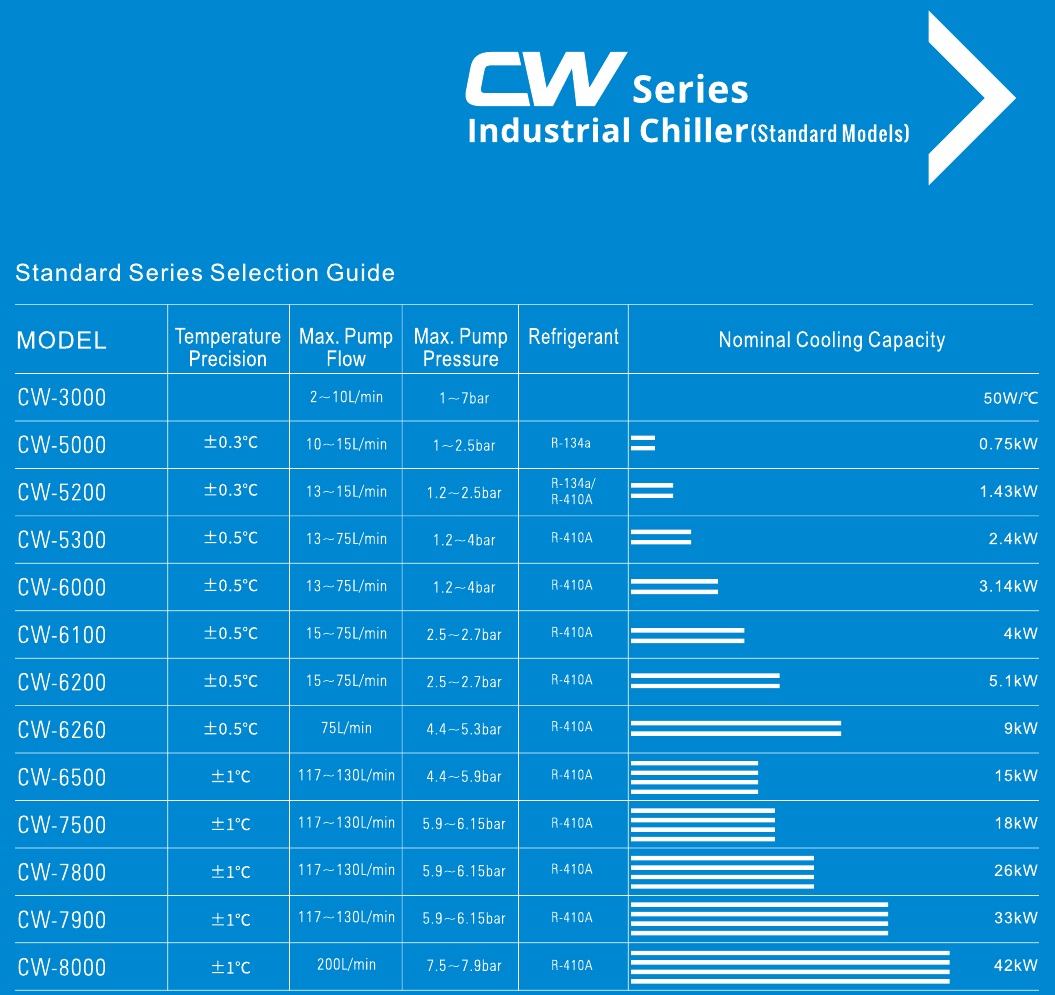

CW Series 1.jpg

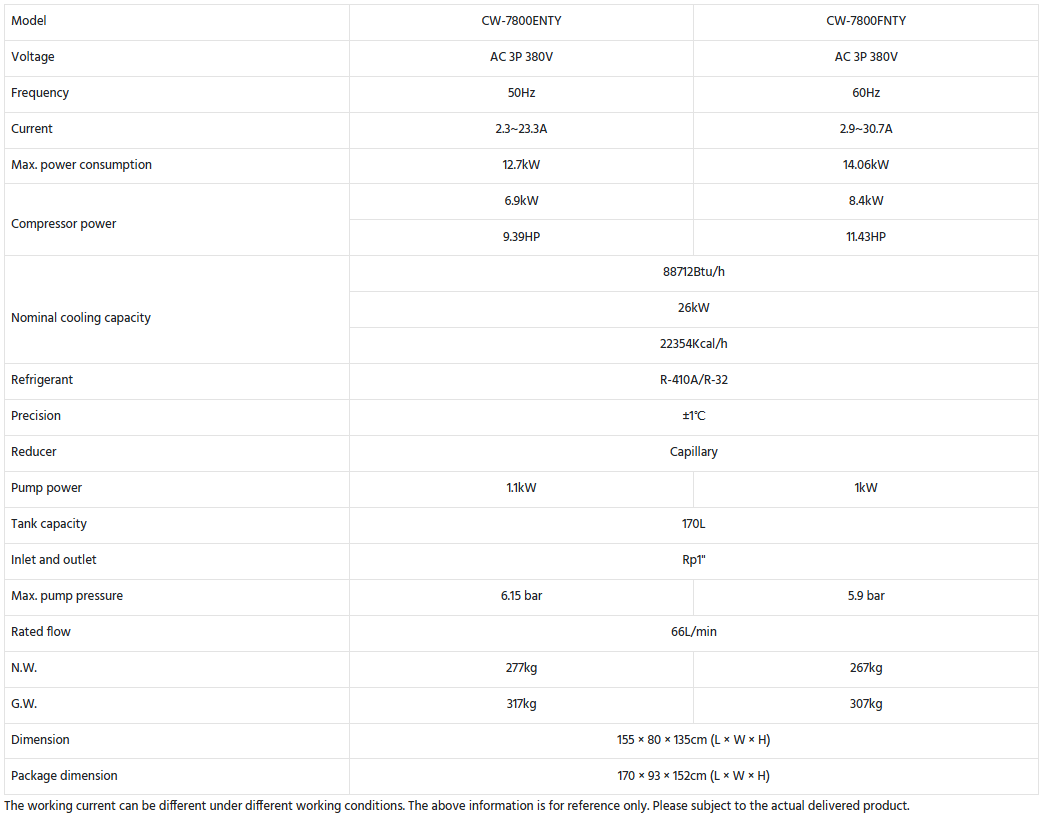

Product Parameters

CW-7800 series 1.png


Product Features

* Cooling Capacity: 26000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A/R-32

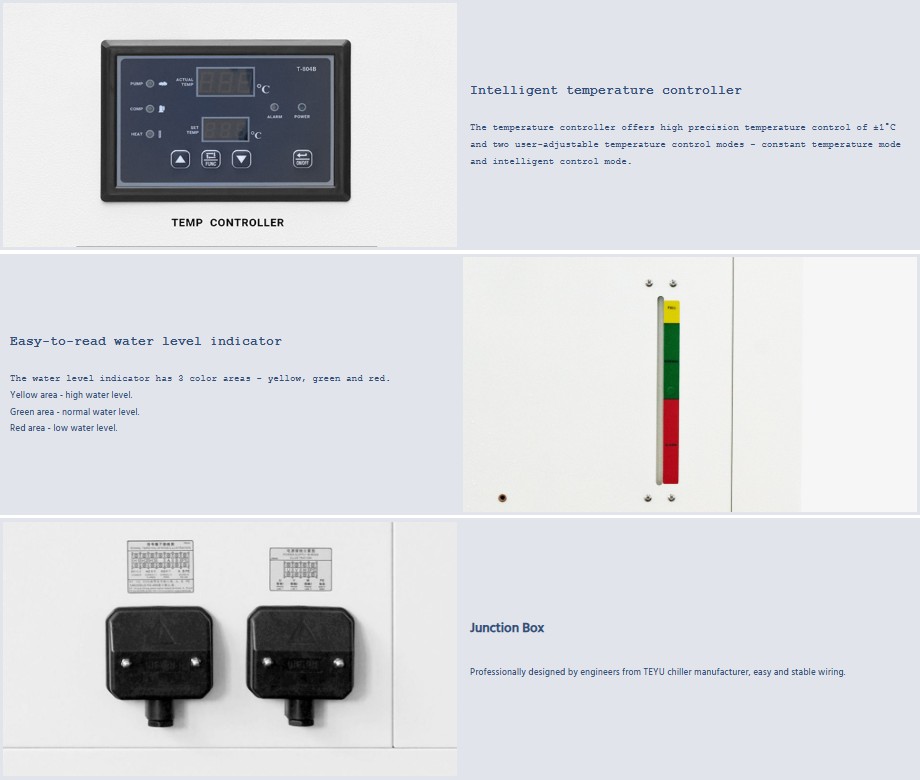

* Intelligent temperature controller

* Multiple alarm functions

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Easy maintenance and mobility

* Available in 380V,415V or 460V



Optional Items



 Heater





Filter



Product Details



Ventilation Distance



High Power Industrial Chiller System CW-7800 Ventilation Distance

Certificate
High Power Industrial Chiller System CW-7800 Certificate
Product Working Principle



High Power Industrial Chiller System CW-7800 Product Working Principle

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the water chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
