Laser & Process Water Chiller

  • CW-6500

    Model CW-6500
    Dimensions 85 x 66 x 119cm (L x W x H)
    Standard CE, REACH and RoHS

상세정보

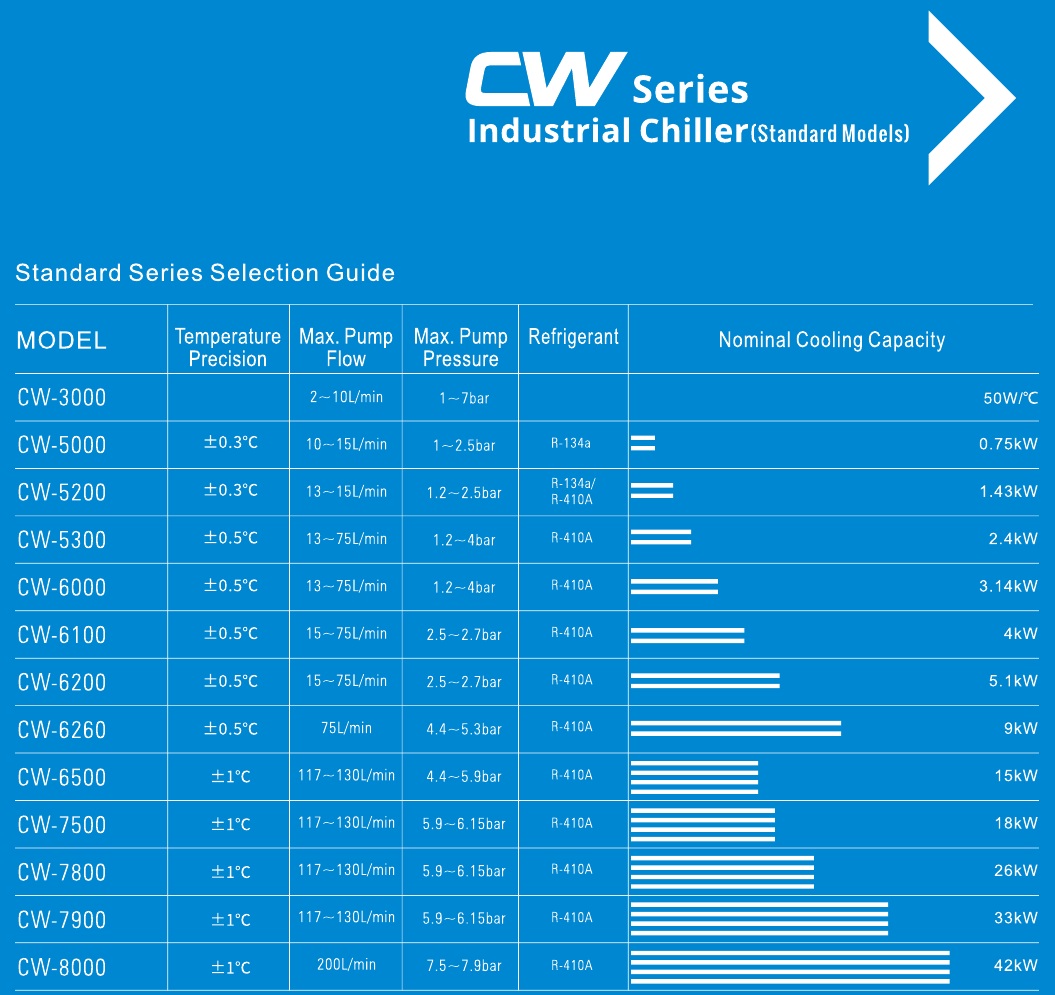

CW Series 1.jpg

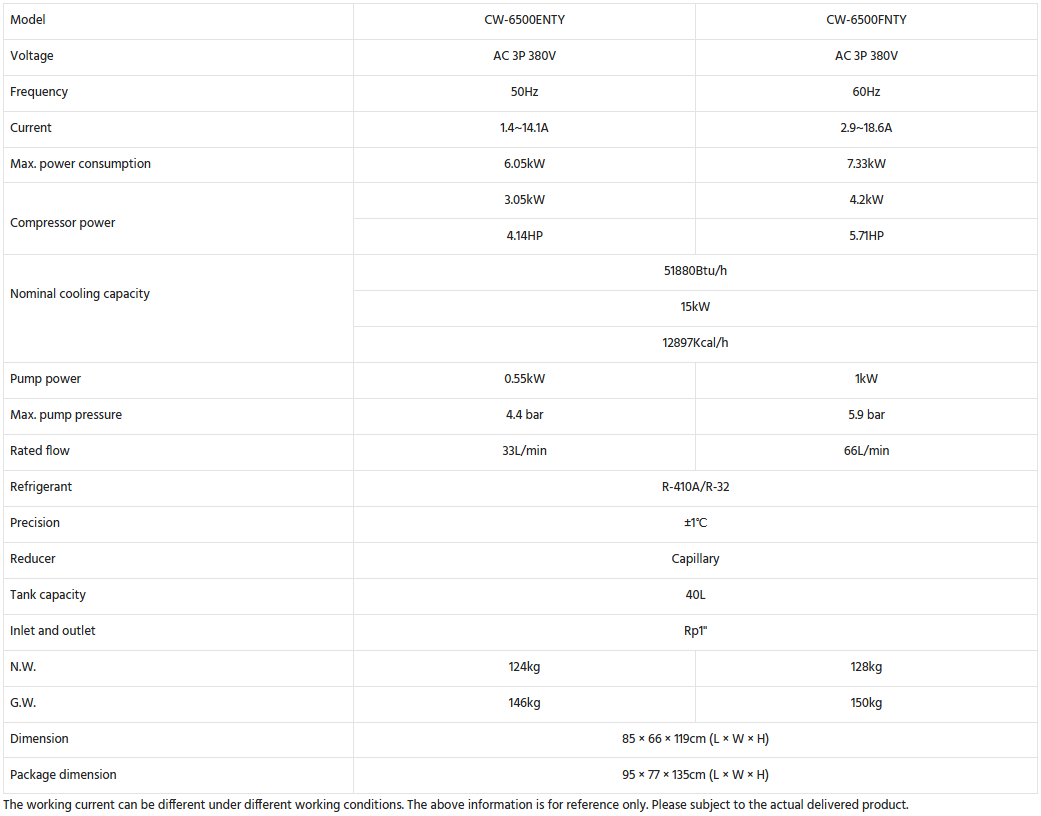

Product Parameters

CW-6500 series 1.png


Product Features

* Cooling Capacity: 15000W

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A/R-32

* Intelligent temperature controller

* Multiple alarm functions

* Ready for immediate use

* Easy maintenance and mobility

* RS-485 Modbus communication function

* Available in 380V



Optional Items



 Heater





Filter



Product Details
Ventilation Distance

TEYU Industrial Water Chiller CW-6500 Ventilation Distance

Certificate
TEYU CO2 Laser Cutting Machine Chiller Certificate
Product Working Principle

CO2 Laser Cutting Machine Chiller Product Working Principle

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the water chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
