PRODUCT

제품소개

Laser & Process Water Chiller

  • CW-6100

    Model CW-6100
    Dimensions 66 x 47 x 90cm (L x W x H)
    Standard CE, REACH and RoHS

상세정보

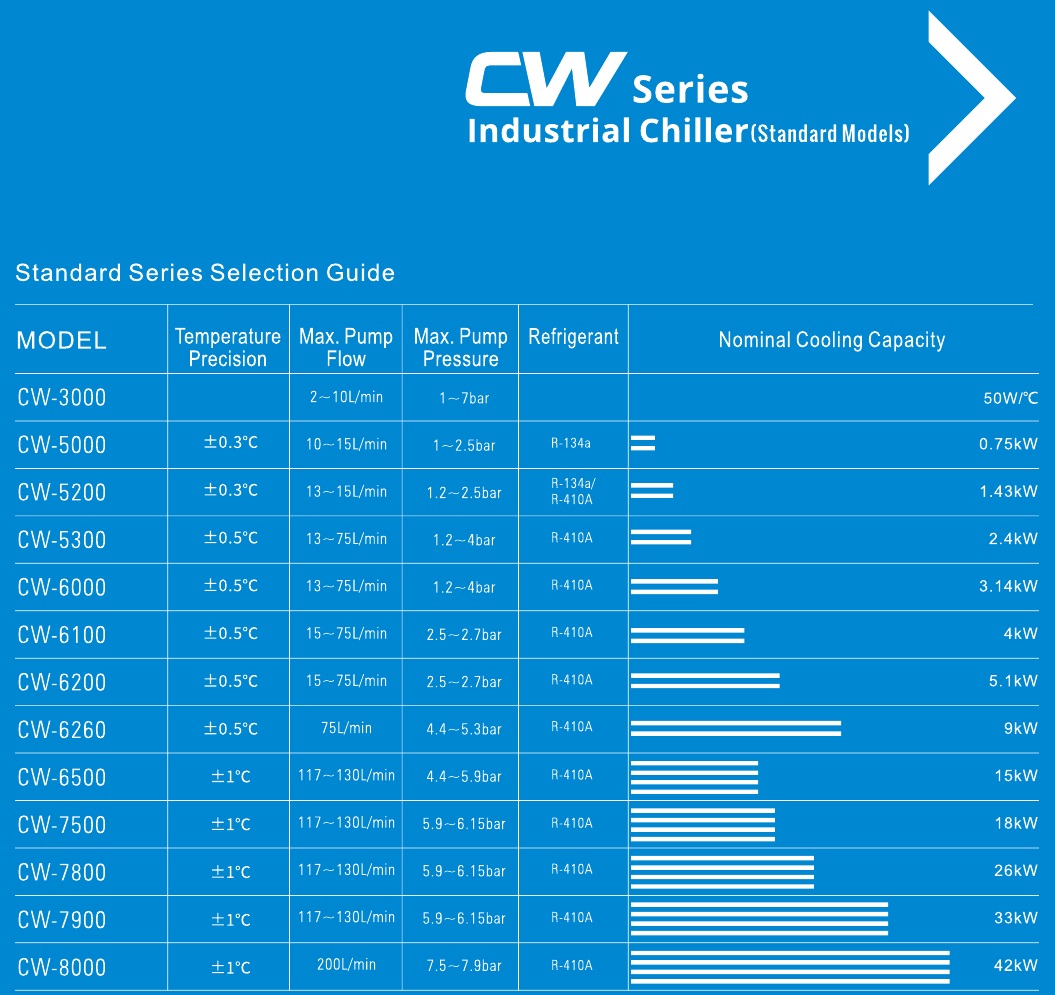

CW Series 1.jpg

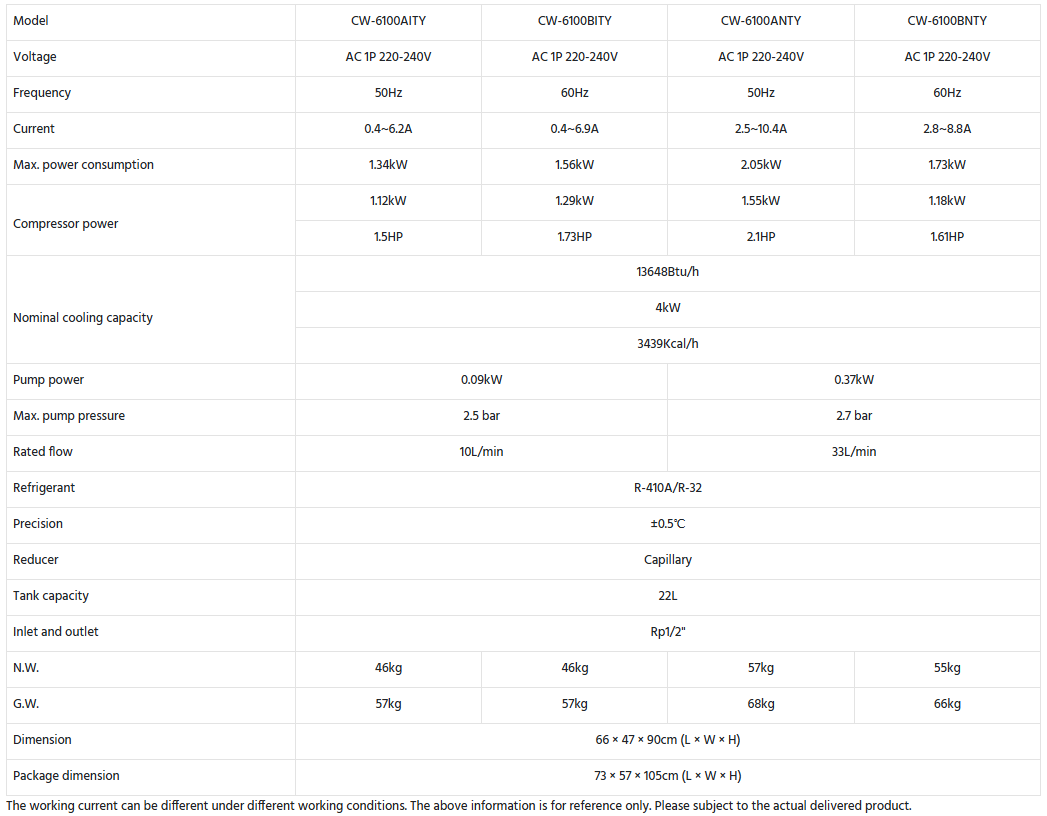

Product Parameters

CW-6100 series 1.png


Product Features

* Cooling Capacity: 4000W

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410A/R-32

* User-friendly temperature controller

* Integrated alarm functions

* Back mounted water fill port and easy-to-read water level check

* High reliability, energy efficiency and durability

* Simple setup and operation

Optional Items



 Heater





Filter





 US standard plug / EN standard plug



Product Details
Ventilation Distance

Water Cooling Chiller System CW-6100 Ventilation Distance

Certificate
Water Cooling Chiller System CW-6100 Certificate
Product Working Principle

Water Cooling Chiller System CW-6100 Product Working Principle

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the water chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
