PRODUCT

제품소개

Laser & Process Water Chiller

  • CW-5000

    Model CW-5000
    Dimensions 58 x 29 x 47 cm (L x W x H)
    Standard CE, REACH and RoHS

상세정보

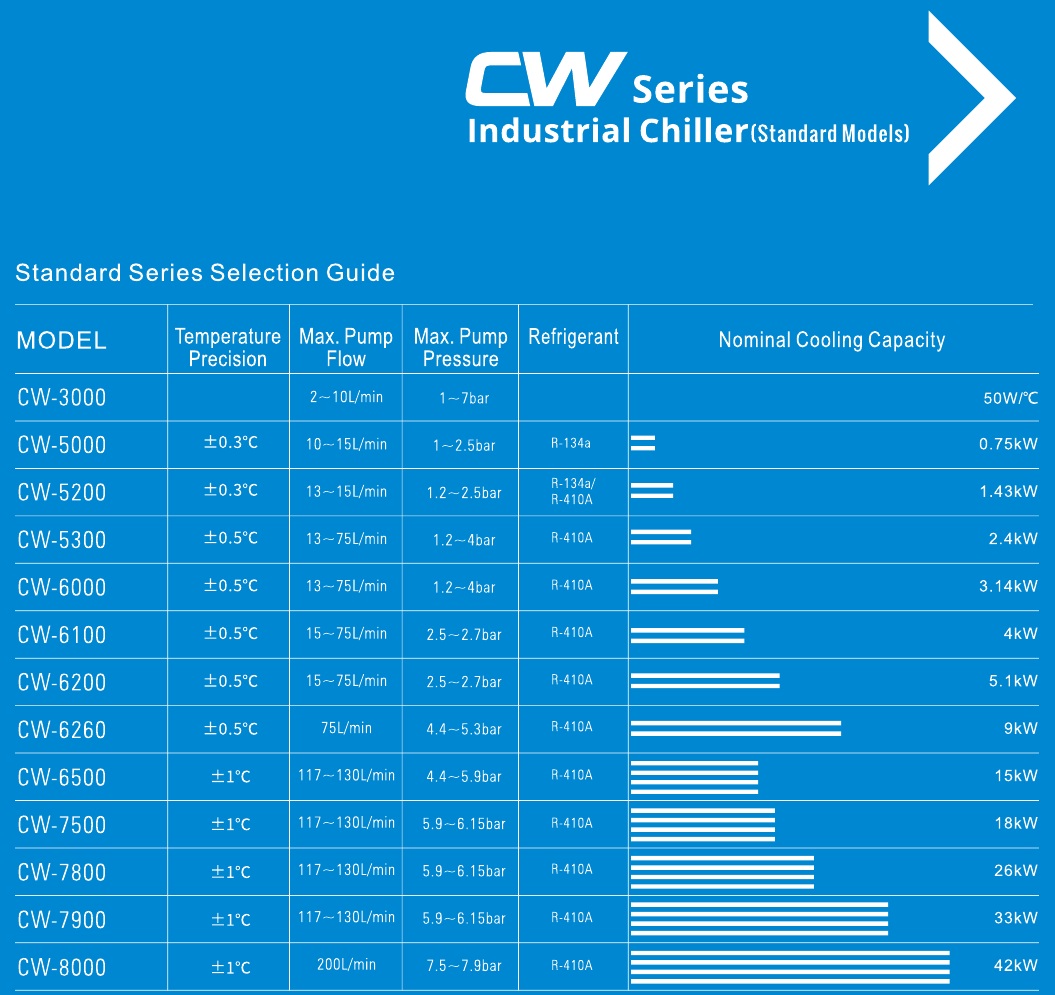

CW Series 1.jpg

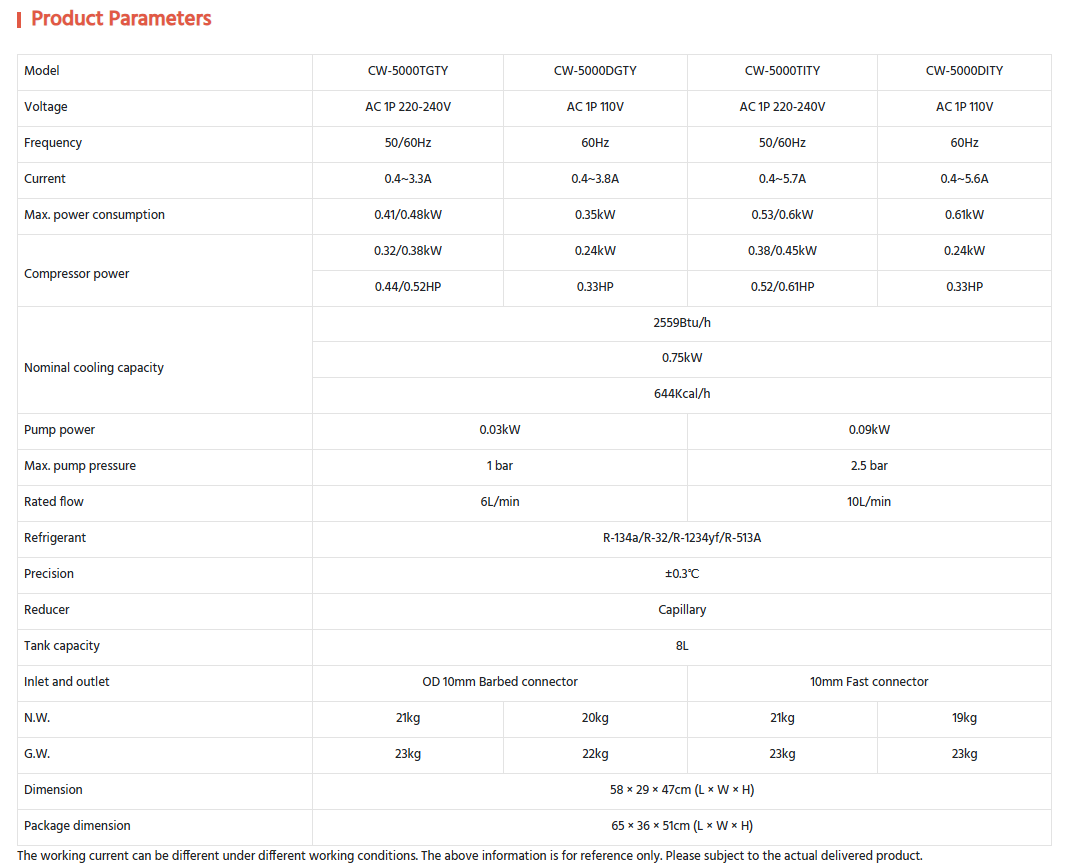

CW-5000 series 1.png

Product Features

* Cooling Capacity: 750W

* Active cooling

* Temperature stability: ±0.3°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-134a/R-32/R-1234yf/R-513A

* Compact, portable design and quiet operation

* High efficiency compressor

* Top mounted water fill port

* Integrated alarm functions

* Low maintenance and high reliability

* 50Hz/60Hz dual-frequency compatible available

* Optional dual water inlet & outlet

Optional Items



 Heater





Filter





 US standard plug / EN standard plug



Product Details
Ventilation Distance



Industrial Water Chiller CW-5000 Ventilation Distance

Certificate
Industrial Water Chiller CW-5000 Certificate
Product Working Principle



Industrial Water Chiller CW-5000 Product Working Principle

FAQ
Is TEYU Chiller a trading company or a manufacturer?
We are professional industrial water chiller manufacturer since 2002.
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the industrial water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (service@teyuchiller.com) first.
