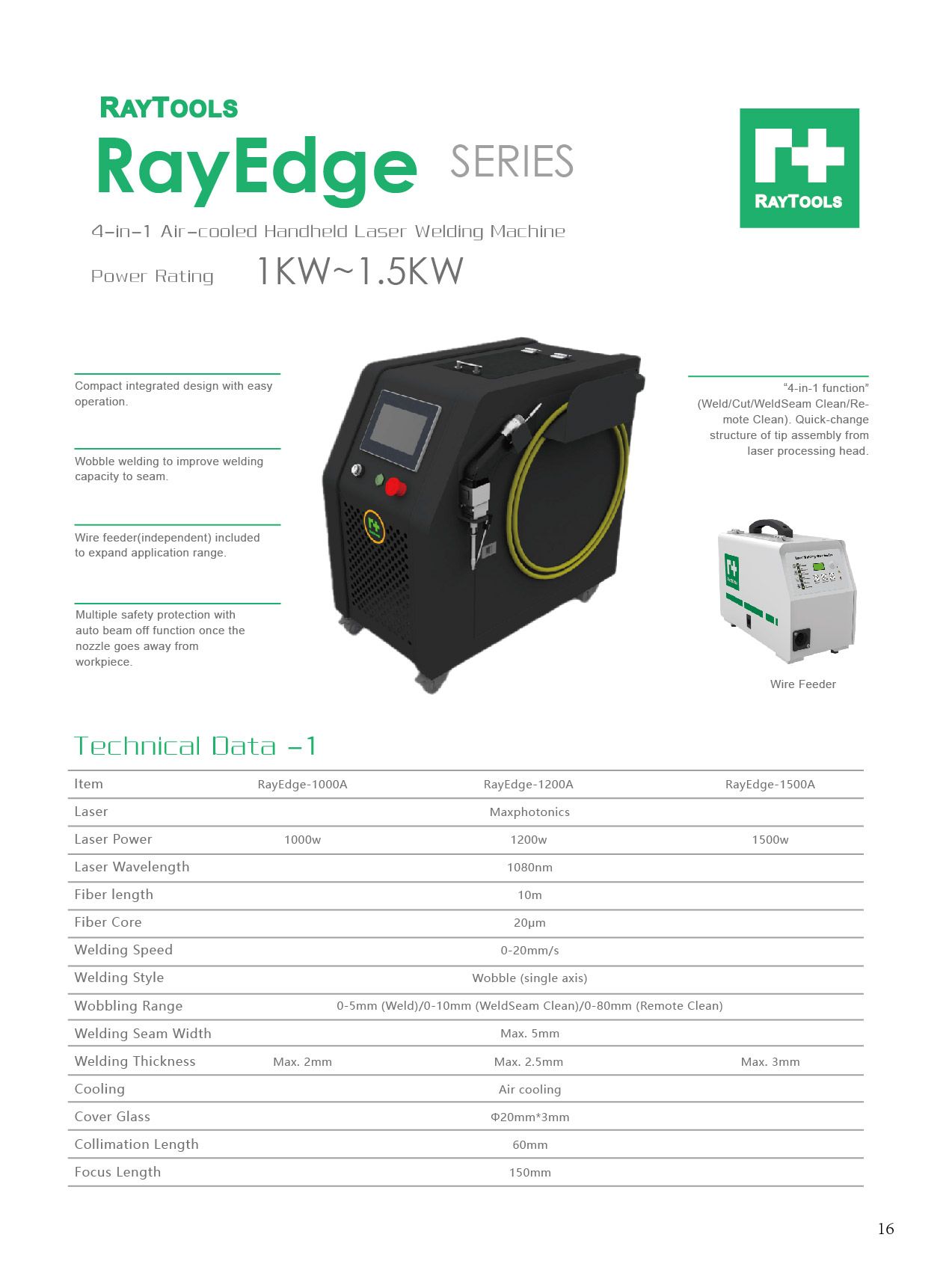

RayEdge 4-in-1 Air-cooled Handheld Laser Welding Machine
Compact integrated design with easy operation.
Wobble welding to improve welding capacity to seam.

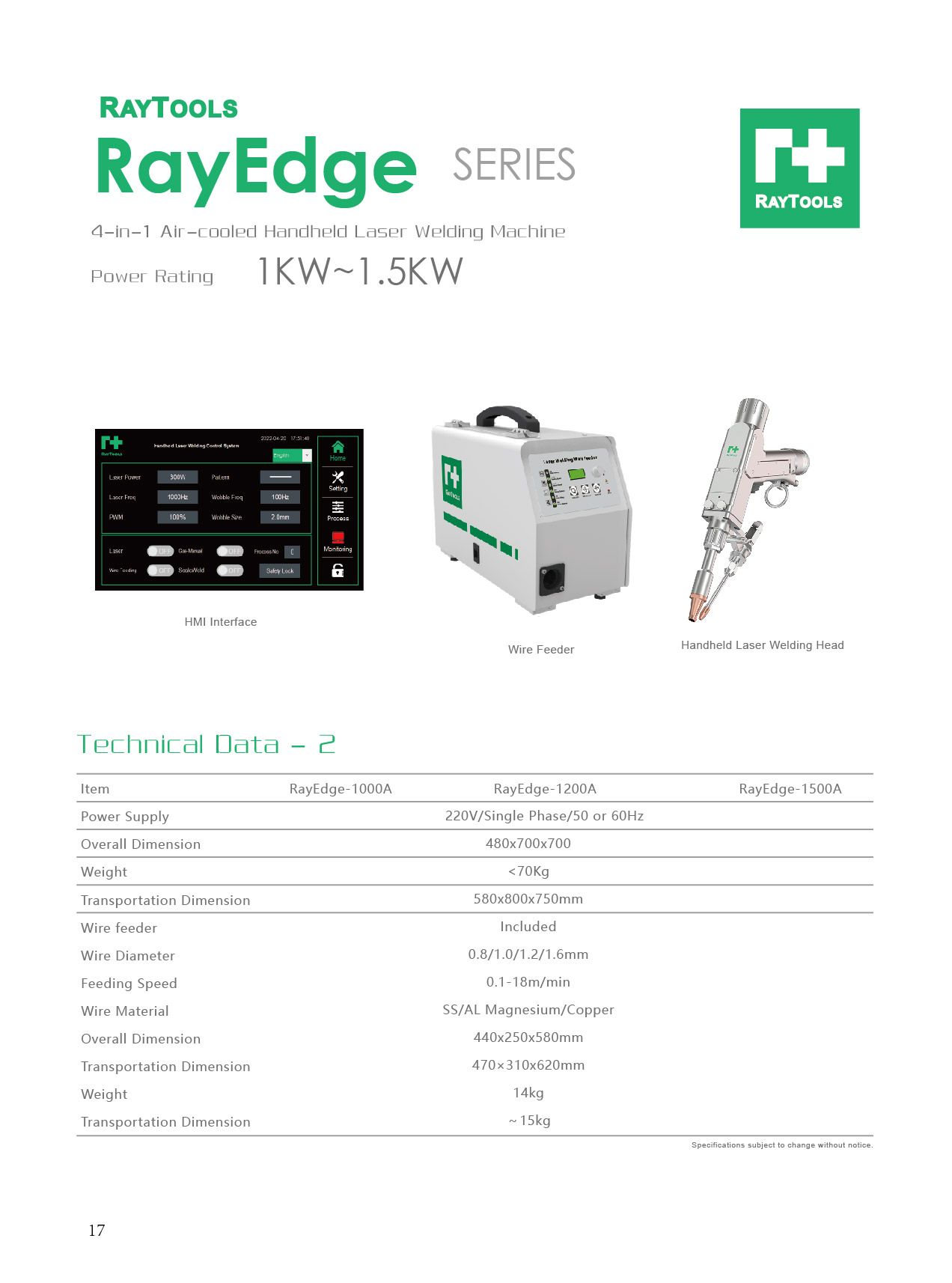

Wire feeder included to expand application range.
Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
“4-in-1 function” (Weld/Cut/WeldSeam Clean/Remote Clean).
Quick-change structure of tip assembly from laser processing head.
간편한 조작으로 컴팩트한 통합 디자인.
용접 비드를 향상 시키기 위한 Wobble 용접.
적용 범위를 확장하기 위해 와이어 피더가 포함되어 있습니다.
노즐이 공작물에서 벗어나면 자동 빔 오프 기능으로 다중 안전 보호 기능을 제공합니다.
"4-in-1 기능"(용접/절단/용접 부위 클리닝/클리닝). 빠른 교체
| Laser Power |
1000-1500W |
| Fiber Length |
10M |
| Focusing Length |
150mm |
| Overall Dimension |
480x700x700mm |
| Weight |
70KG |
