Laser Source & System

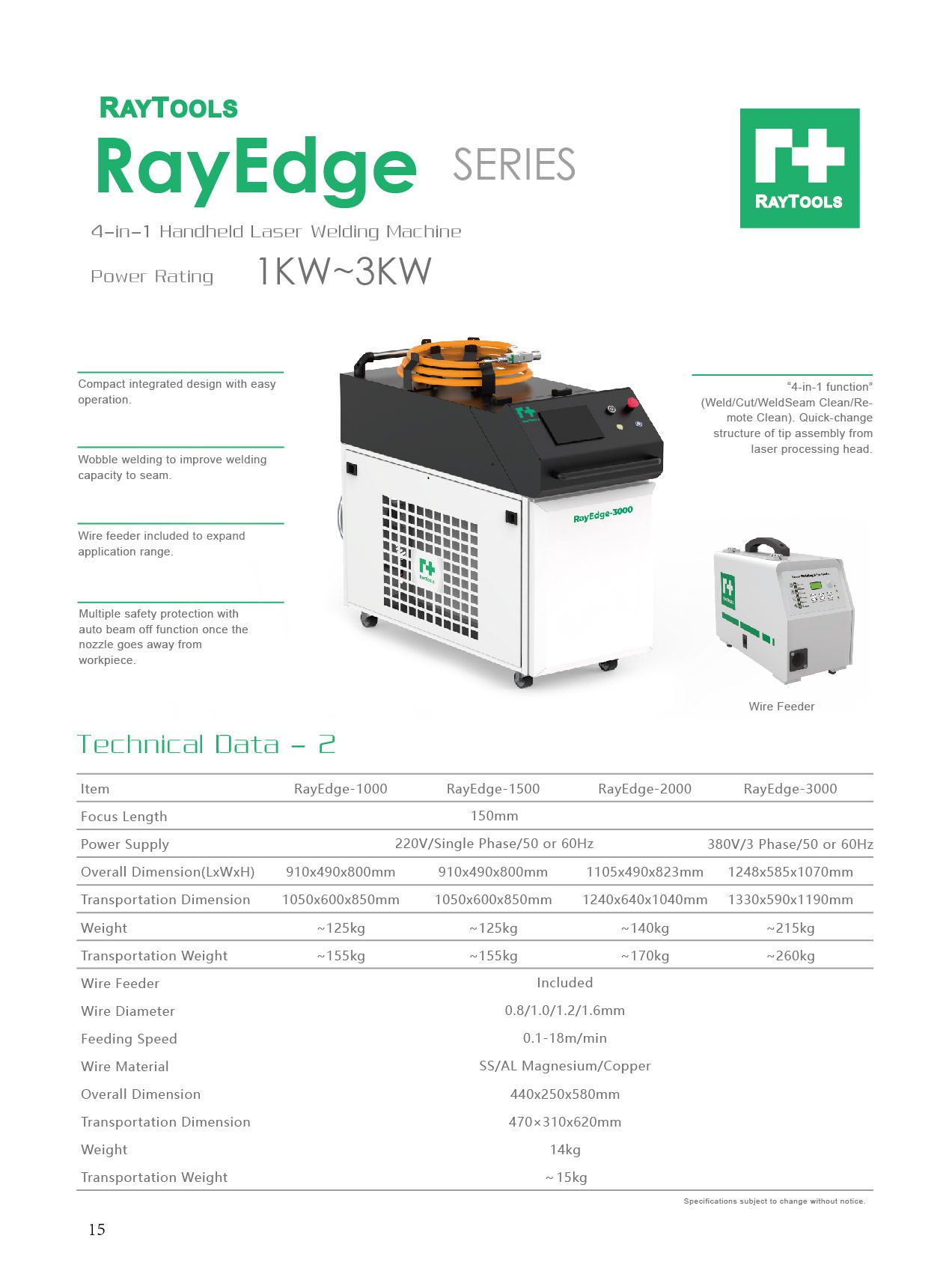

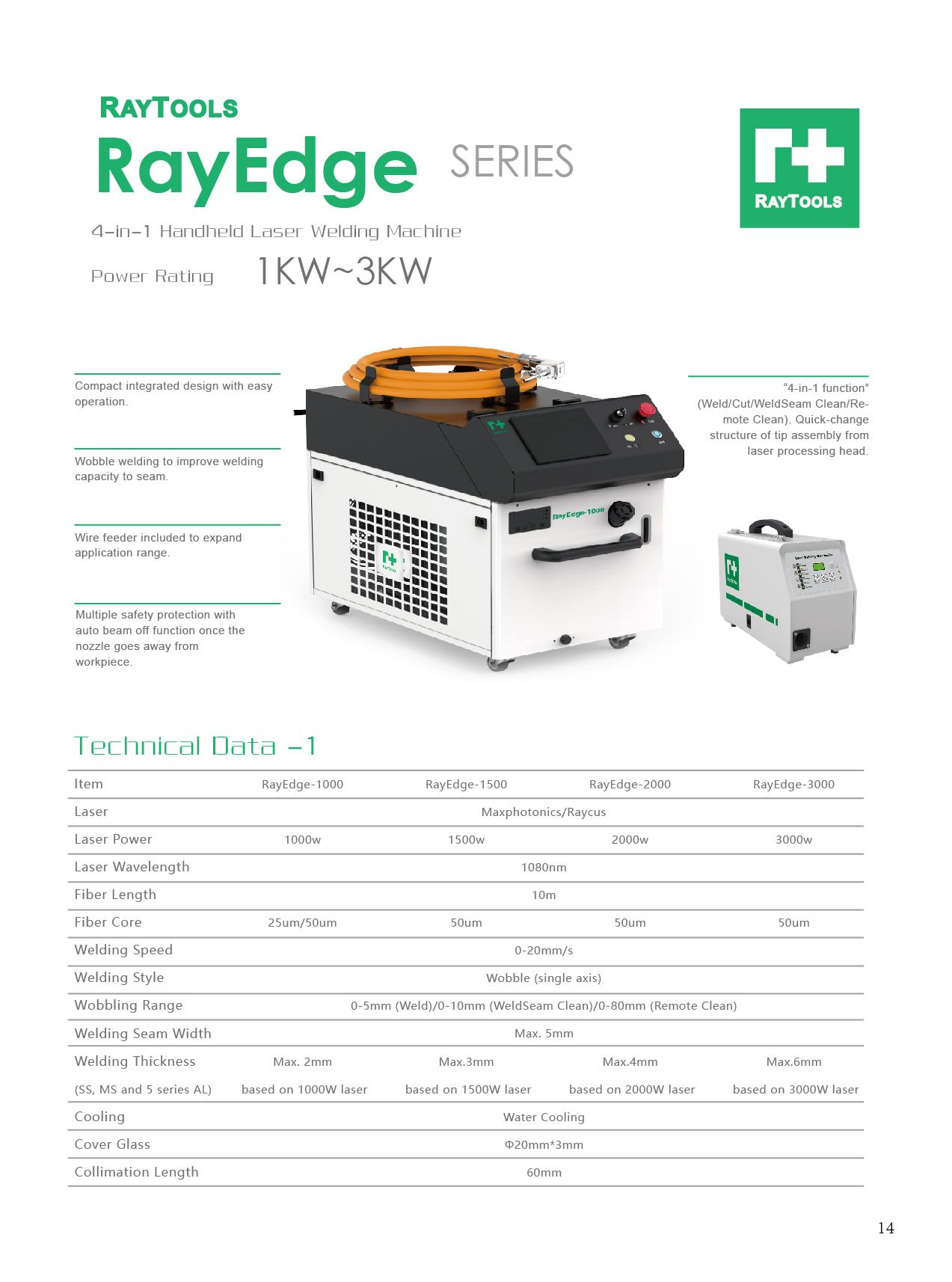

  • 4-in-one Handheld Laser Machine RayEdge-2000

    Compact integrated design with easy operation.
    Wobble welding to improve welding capacity to seam.
    Wire feeder included to expand application range.
    Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
    “4-in-1 function” (Weld/Cut/WeldSeam Clean/Remote Clean).
    Quick-change structure of tip assembly from laser processing head.
    간편한 조작으로 컴팩트한 통합 디자인.
    용접 비드를 향상 시키기 위한 Wobble 용접.
    적용 범위를 확장하기 위해 와이어 피더가 포함되어 있습니다.
    노즐이 공작물에서 벗어나면 자동 빔 오프 기능으로 다중 안전 보호 기능을 제공합니다.
    "4-in-1 기능"(용접/절단/용접부 클리닝/클리닝).
    레이저 가공 헤드에서 팁 어셈블리의 퀵 체인지 구조.
    Laser Power 2000W
    Welding Seam Width Max. 5mm
    Welding Thickness Max. 4mm
    Fiber Length 10m
    Focusing Length 150mm
    Overall Dimension 1105x490x823mm
    Weight ~ 140kg
