Beam Delivery

  • Auto Focus Tube Cutting Head BD04K

    Lightweight design with fast acceleration, Optimized optical configuration and efficient air flow design significantly to improve cutting quality and efficiency.
    With QBH,QD G5 and other types of optical fiber interfaces, it is applicable to various fiber lasers.
    Good sealing to keep beam path clean.
    Automatically change the focus position.
    빠른 가속, 최적화된 광학 구성, 효율적인 공냉식 설계로 절단 품질과 효율성을 향상시키는 경량 설계.
    QBH, QD G5 및 기타 유형의 Fiber 인터페이스를 통해 다양한 Fiber Laser에 적용할 수 있습니다.
    빔 경로를 청결하게 유지하기 위한 밀폐 설계.
    포커스 위치를 자동으로 변경합니다.
    Wavelength 1080nm
    Fiber Interface QBH, G5
    Power Rating 4000W
    Collimation Length 100mm
    Focusing Length 200mm
    Auto Focus Range -12 ~ 12mm
    Weight ~ 4.8kg

상세정보

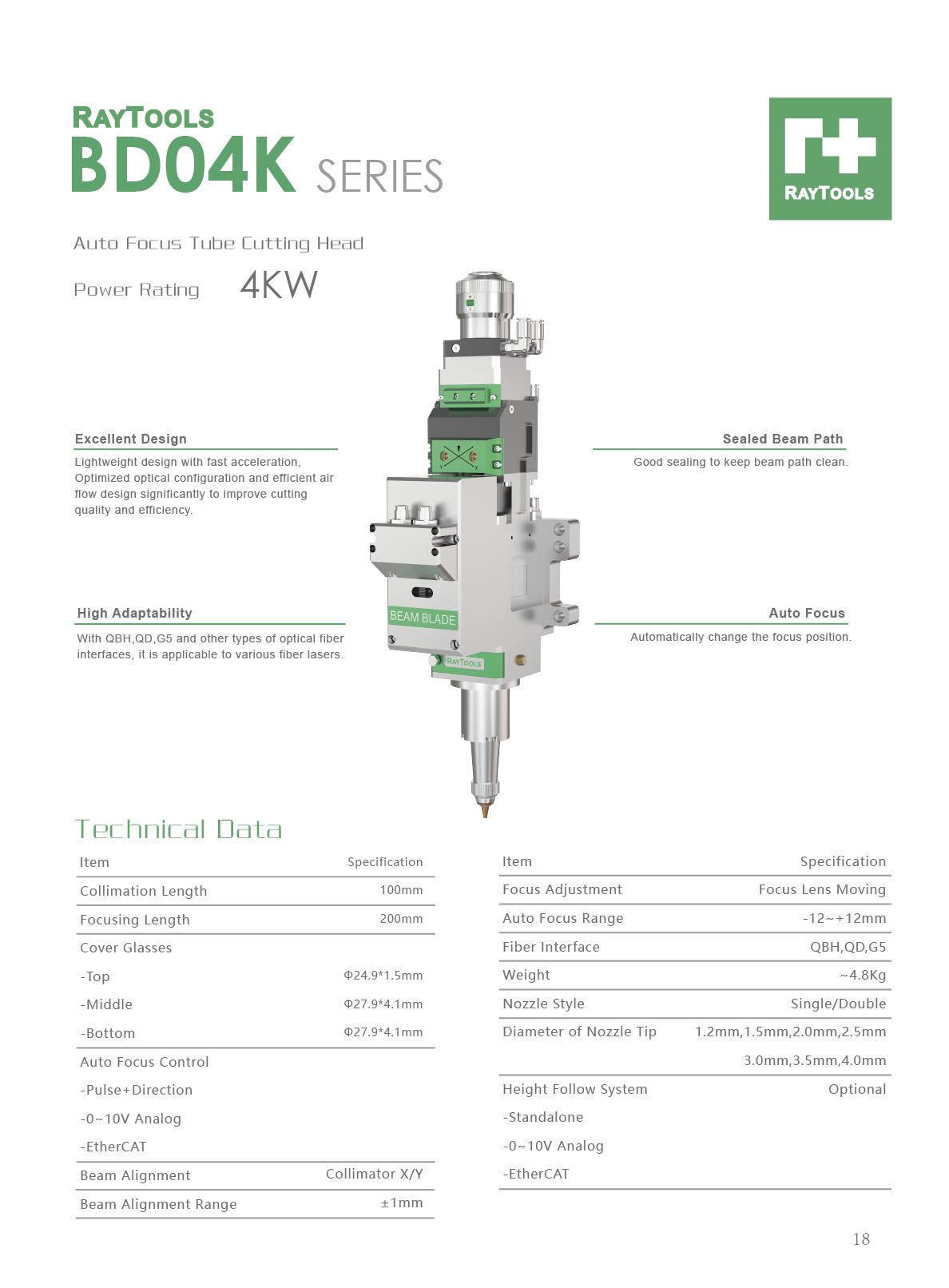

BD04K 1.jpg

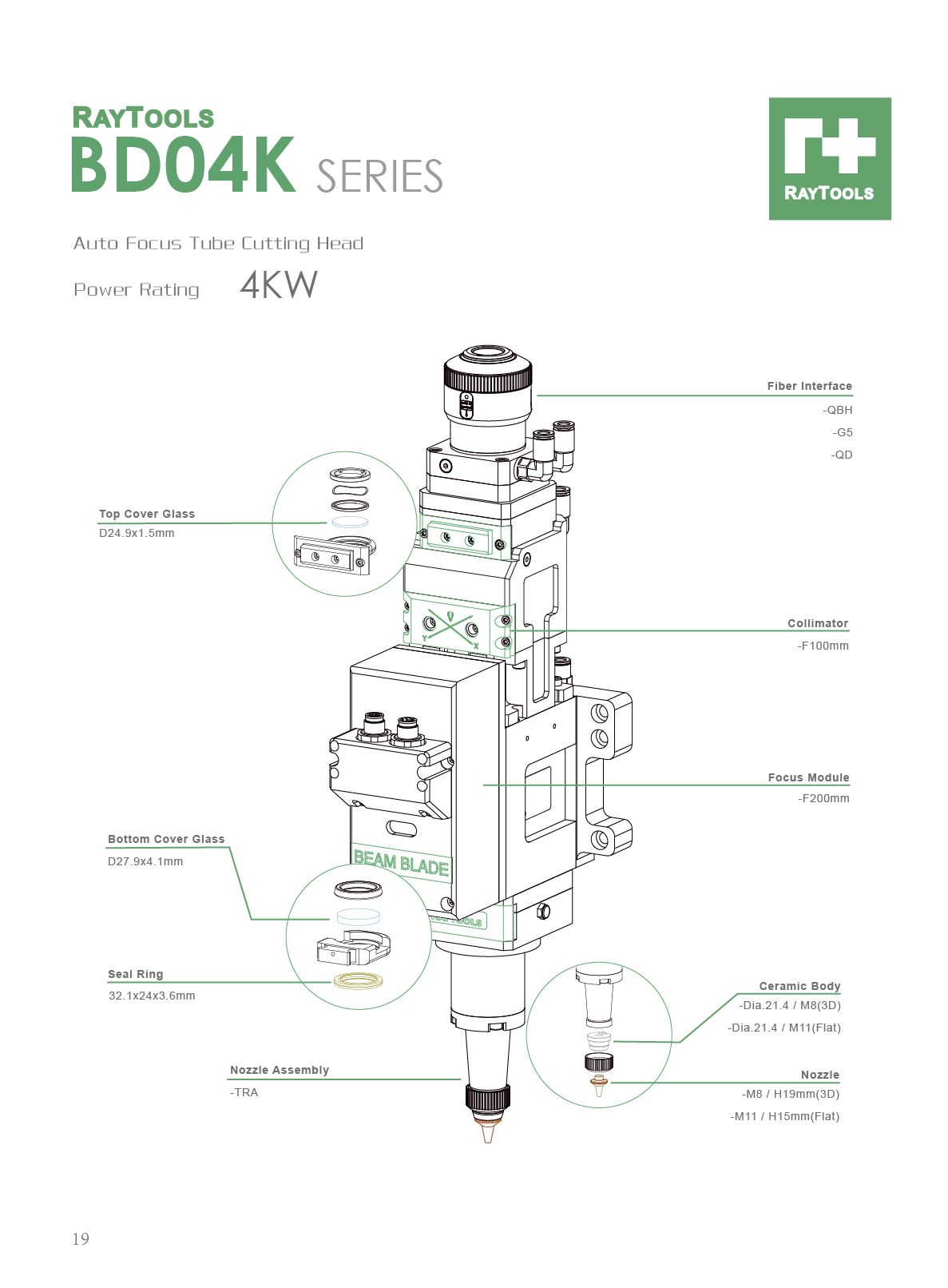

BD04K 2.jpg
