Beam Delivery

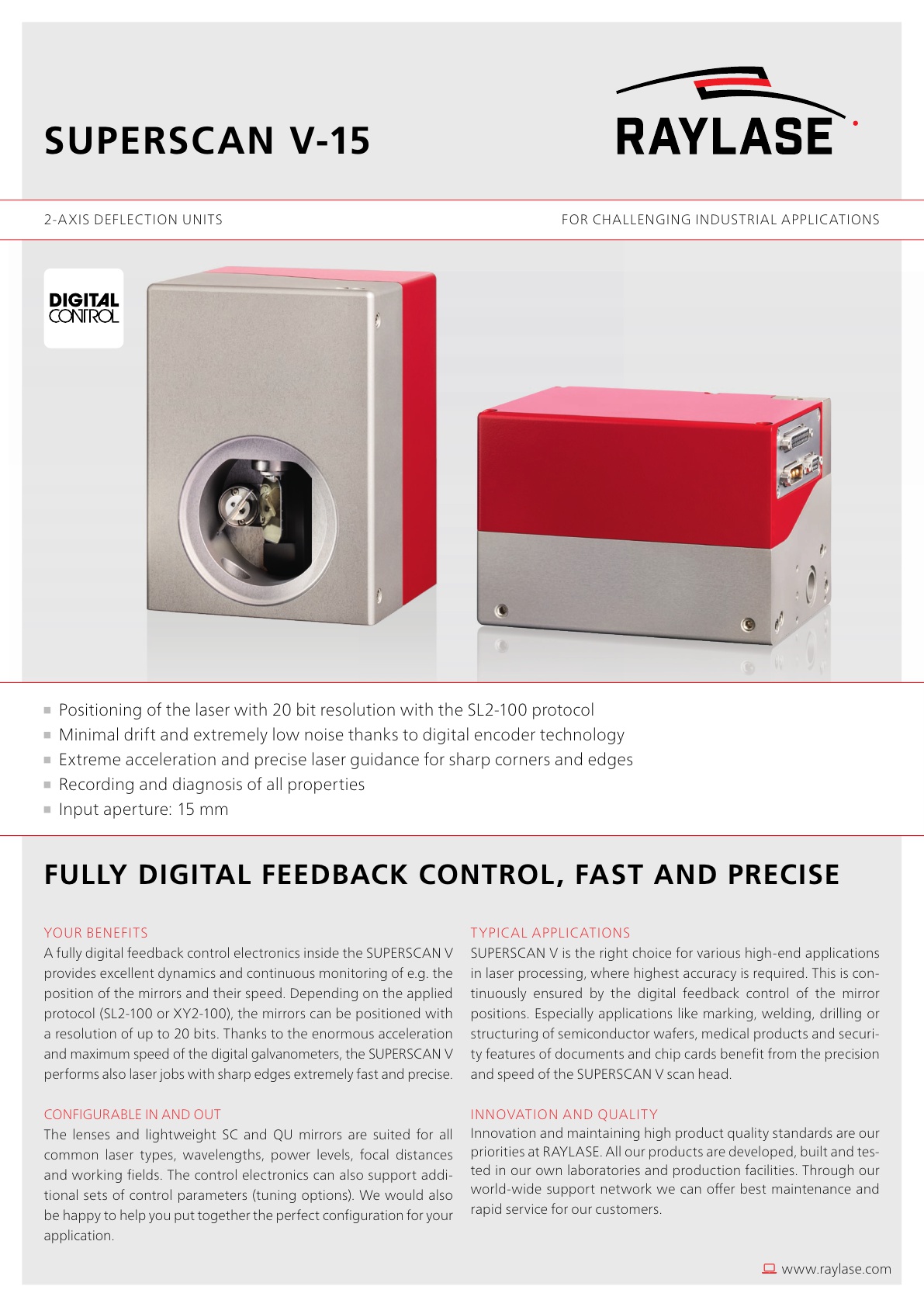

  • SUPERSCAN V-15

    Positioning of the laser with 20 bit resolution with the SL2-100 protocol
    Minimal drift and extremely low noise thanks to digital encoder technology
    Extreme acceleration and precise laser guidance for sharp corners and edges
    Recording and diagnosis of all properties
    Available apertures (mm): 15
    SL2-100 프로토콜을 사용한 20비트 해상도
    디지털 인코더 기술 덕분에 드리프트가 최소화되고 소음이 매우 적습니다
    날카로운 모서리를 위한 극한 가속 및 정밀 레이저 유도
    모든 속성의 기록 및 진단
    사용 가능한 Aperture (mm): 15

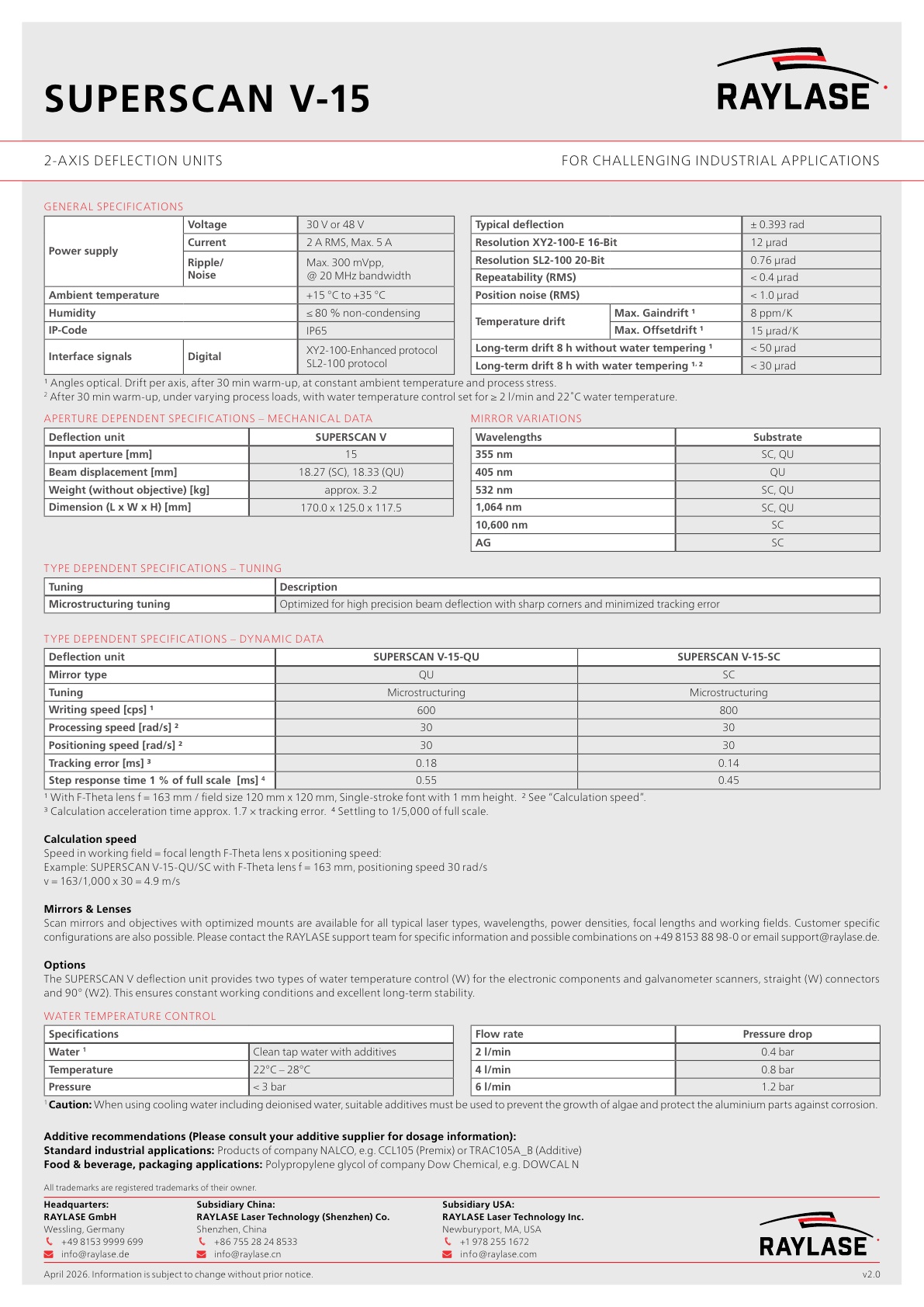

    Available apetures 15mm
    Wavelength 355nm / 532nm / 1064nm / 10600nm
    Control Protocol XY2-100 / SL2-100
