Beam Delivery

  • Manual Focus Laser Cutting Head BT240S

    Zero focus scale recovery function to maintain accurate focus adjustment.
    Integrated design and improved QBH fiber interface to prevent from stucking.
    Dual-water cooling circuit to collimation lens and focus lens.
    IP65 dustproof level with fully enclosed beam path to decrease contamination risk.
    초점 조절을 정확하게 유지하기 위한 제로 포커스 복구 기능.
    통합 설계와 QBH Fiber 인터페이스 개선으로 고착 방지.
    콜리메이션 렌즈와 포커스 렌즈로 연결되는 이중 수냉 회로.
    오염 위험을 줄이기 위해 완전히 밀폐된 빔 경로를 갖춘 IP65 방진 레벨.
    Wavelength 1080nm
    Fiber Interface QBH, QD
    Power Rating 3300W
    Collimation Length 100mm
    Focusing Length 125mm / 155mm / 200mm
    Auto Focus Range -
    Weight ~ 3.5kg

상세정보

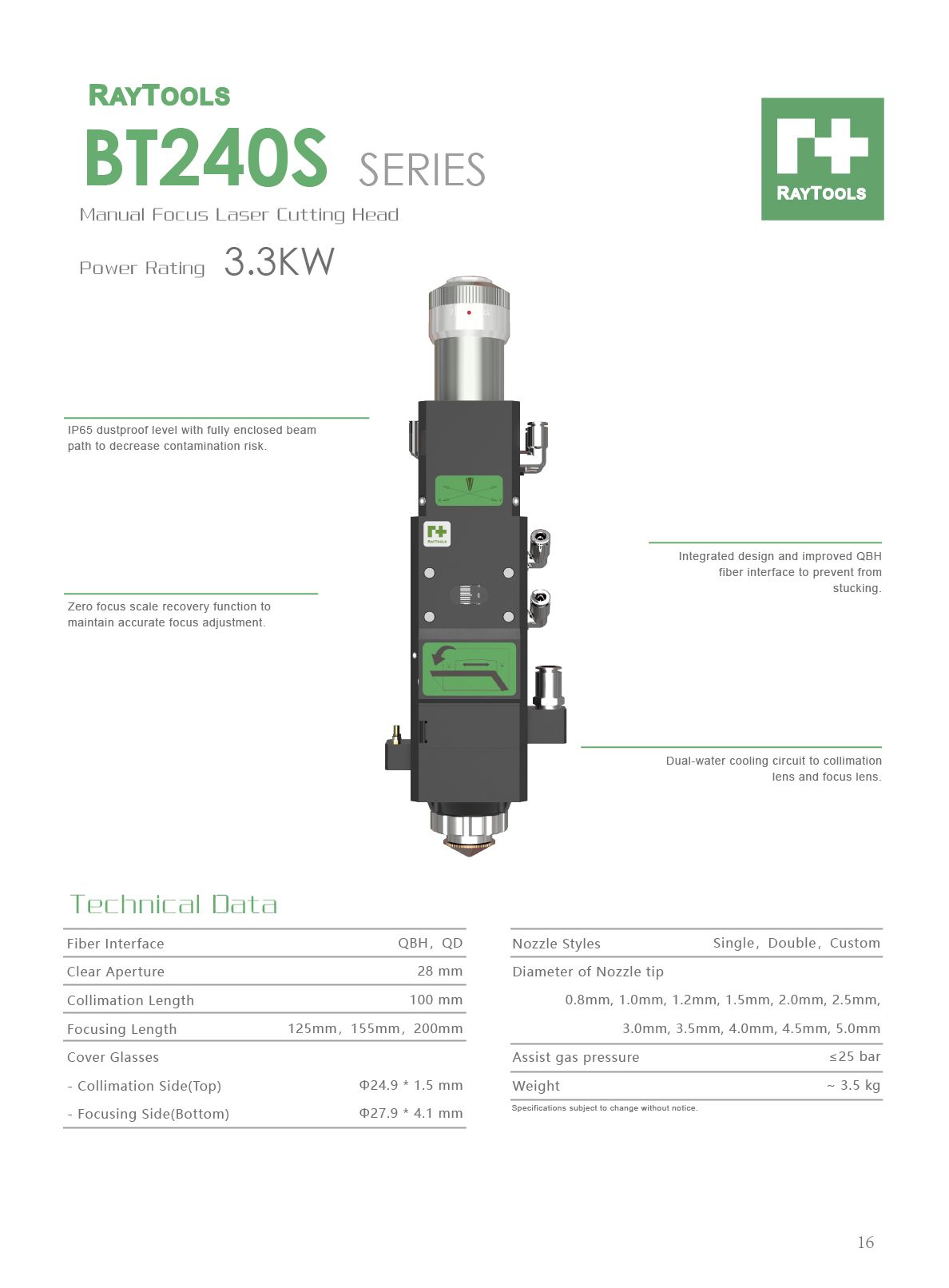

BT240S 1.jpg

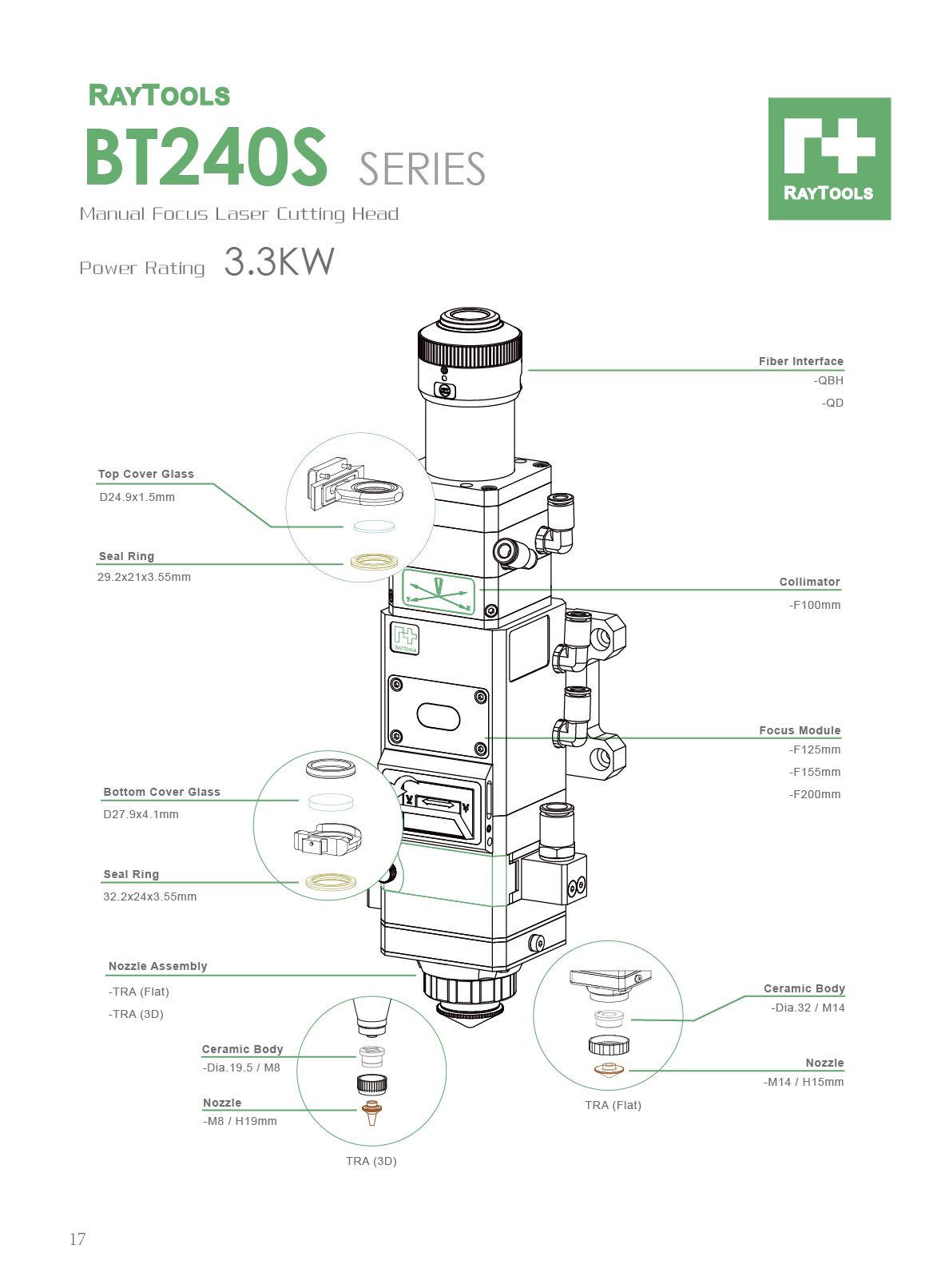

BT240S 2.jpg
