Beam Delivery

  • BS-Mix Series Mixed Gas Laser Cutting Head

    Raytools BS-MIX Series High-Power Laser Cutting Head (15kW-40kW): The Mixed Gas Cutting Expert
    The Raytools BS-MIX series laser cutting head is a cutting-edge solution engineered for high-power laser cutting systems, specifically concentrating on Mixed Gas Cutting technology. This series is designed to deliver outstanding performance, notably by improving cutting thickness and cutting efficiency

상세정보

BS-Mix Series Mixed Gas Laser Cutting Head 동영상 보기 (클릭하세요)













Key Advantage I: Smart Gas Management and Significant Savings

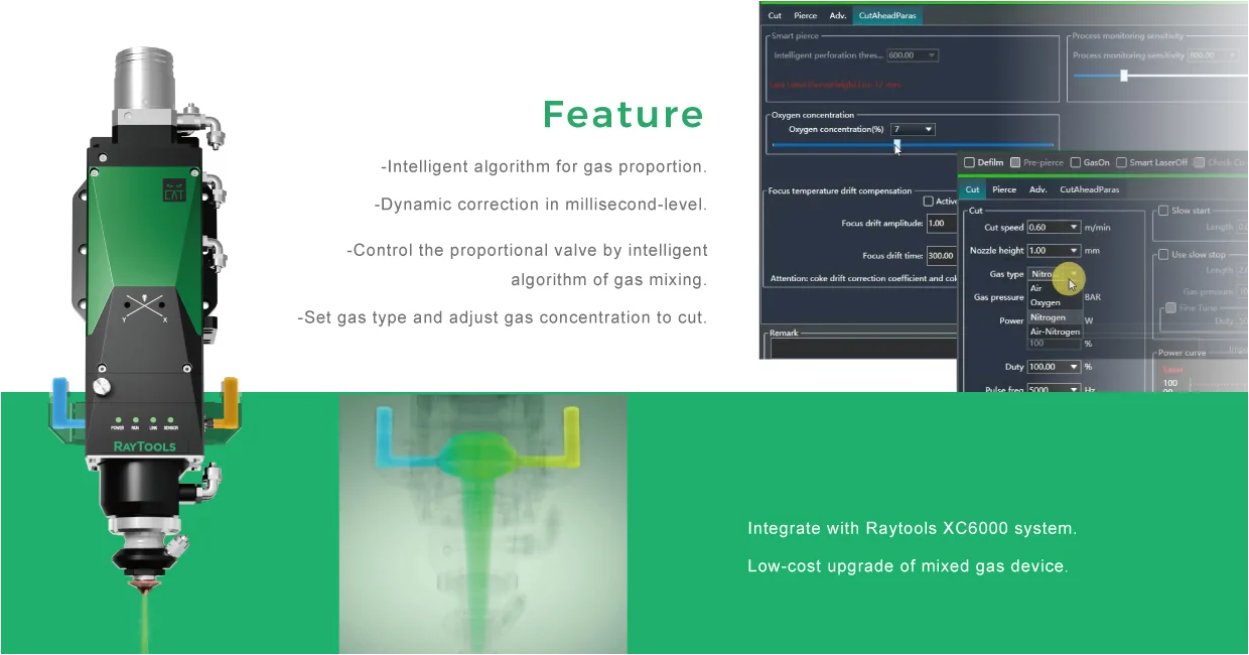

The BS-MIX series cutting head incorporates advanced intelligent control technology, ensuring optimal operating efficiency and cost effectiveness:
1. Intelligent Gas Proportion Control: The equipment features an intelligent algorithm for gas proportion control. This control manages the proportional valve through the intelligent algorithm of gas mixing. Operators can flexibly set the gas type and adjust the gas concentration to cut.

2. Millisecond-Level Dynamic Correction: The precision of gas control is exceptionally high, capable of dynamic correction in millisecond-level speed, ensuring stability and consistency throughout the cutting process.

3. Drastic Reduction in Operating Costs: The BS-MIX series excels in gas consumption efficiency. Comparative tests using a 10mm EU Nozzle show that the system achieves 75% saving of gas consumption (Mixed Nitrogen Cutting compared to Air Cutting), substantially lowering the user's production expenses.

Key Advantage II: Superior Cutting Performance and Quality Enhancement

Through mixed gas technology, this cutting head achieves significant breakthroughs in cutting speed and quality:

1. High-Efficiency and High-Speed Cutting: Under 100μm conditions, Mixed Gas Cutting achieves a high speed of up to 3.5m/min in both 12kW and 30kW power tests, significantly surpassing other comparable cutting modes.

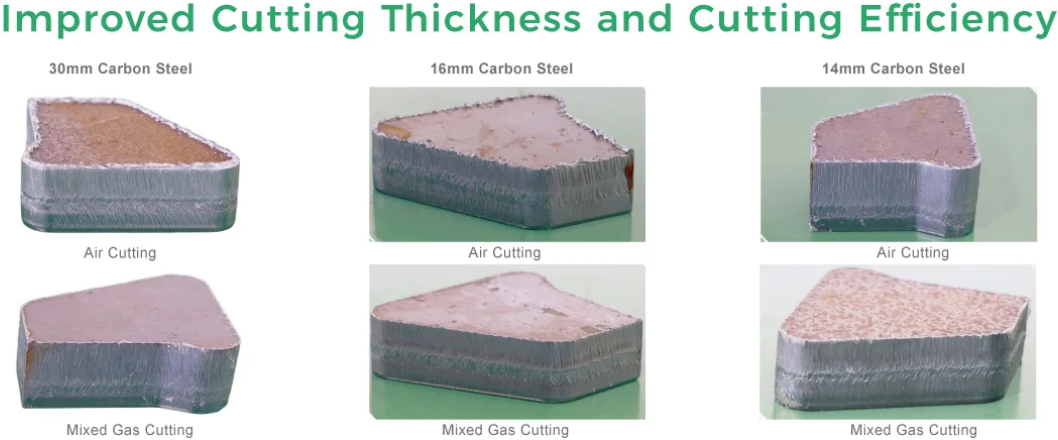

2. Improved Thick Plate Cutting Quality: Mixed Gas Cutting technology significantly improves cutting thickness and cutting efficiency. The visual evidence provided illustrates that mixed gas cutting enhances the quality of thick materials, such as 30mm Carbon Steel, 16mm Carbon Steel, and 14mm Carbon Steel, resulting in noticeably flatter and cleaner cut surfaces when compared to air cutting.

System Integration and Upgrade Path

The BS-MIX series provides straightforward system integration solutions:

• Full XC6000 System Integration: The device is fully integrated with the Raytools XC6000 system, ensuring synergistic control and ease of operation.

• Cost-Effective Upgrade Solution: For current users, the BS-MIX series offers a pathway for a low-cost upgrade of the mixed gas device, making it easy to rapidly enhance the equipment’s cutting capabilities and economic viability
