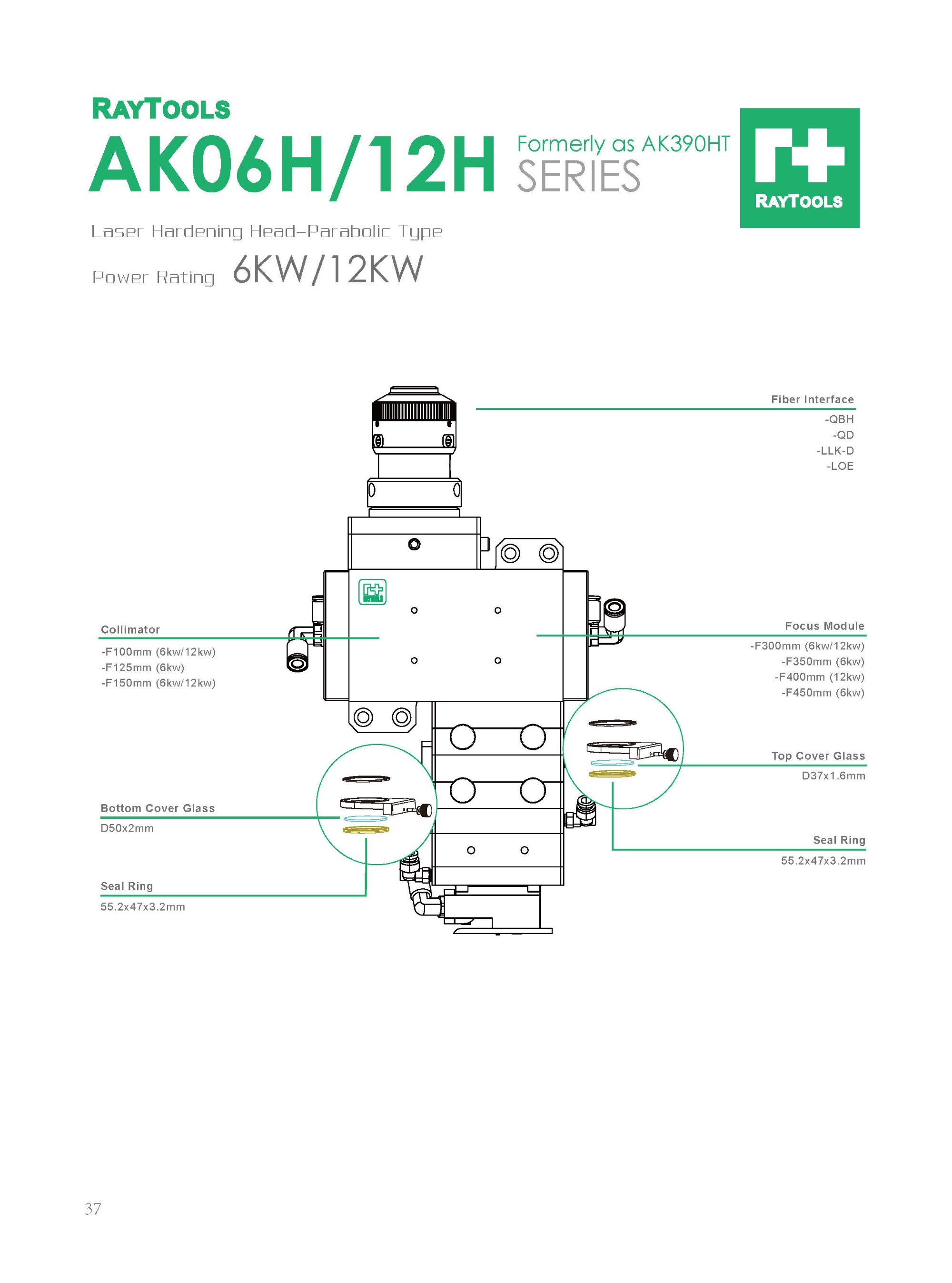

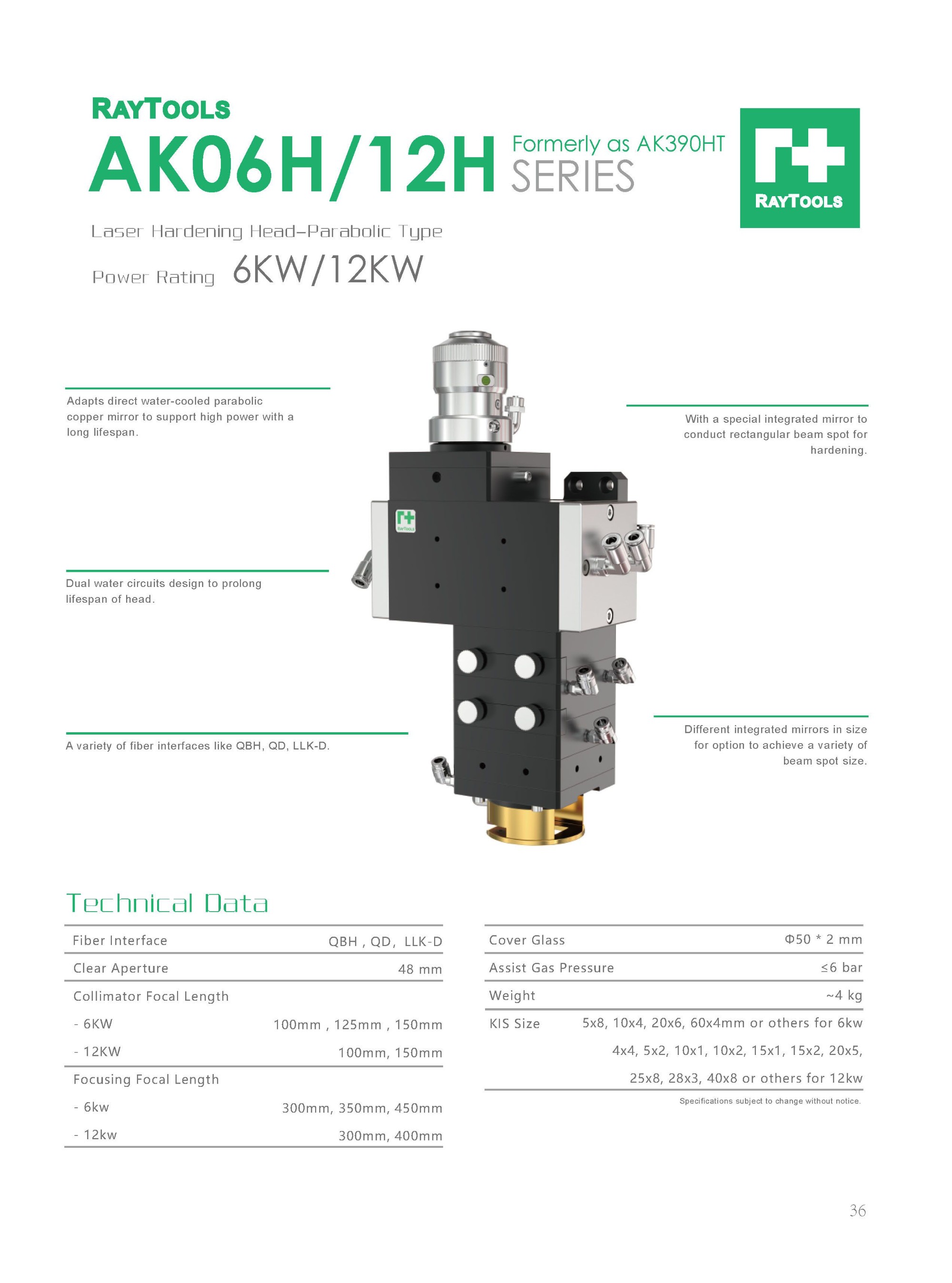

AK06H/12H Laser Hardening Head (Formerly as AK390HT)
Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.
Dual water circuits design to prolong lifespan of head.
A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.
구리 미러를 개조하여 직접 냉각해 긴 수명으로 고출력을 지원합니다.
2중 수냉 회로는 헤드의 수명을 연장하도록 설계되었습니다.
QBH, QD(LLK-D) 또는 LLK-B와 같은 다양한 Fiber 인터페이스.
| Wavelength |
1060 - 1080nm |
| Fiber Interface |
QBH, QD, LLK-D |
| Power Rating |
6000W / 12000W |
| Collimation Length |
100mm / 125mm / 150mm |
| Focusing Length |
300mm / 350mm / 400mm / 450mm |
| Assist Gas Pressure |
4 ~ 6 Bar |
| Weight |
~ 4kg |
