Beam Delivery

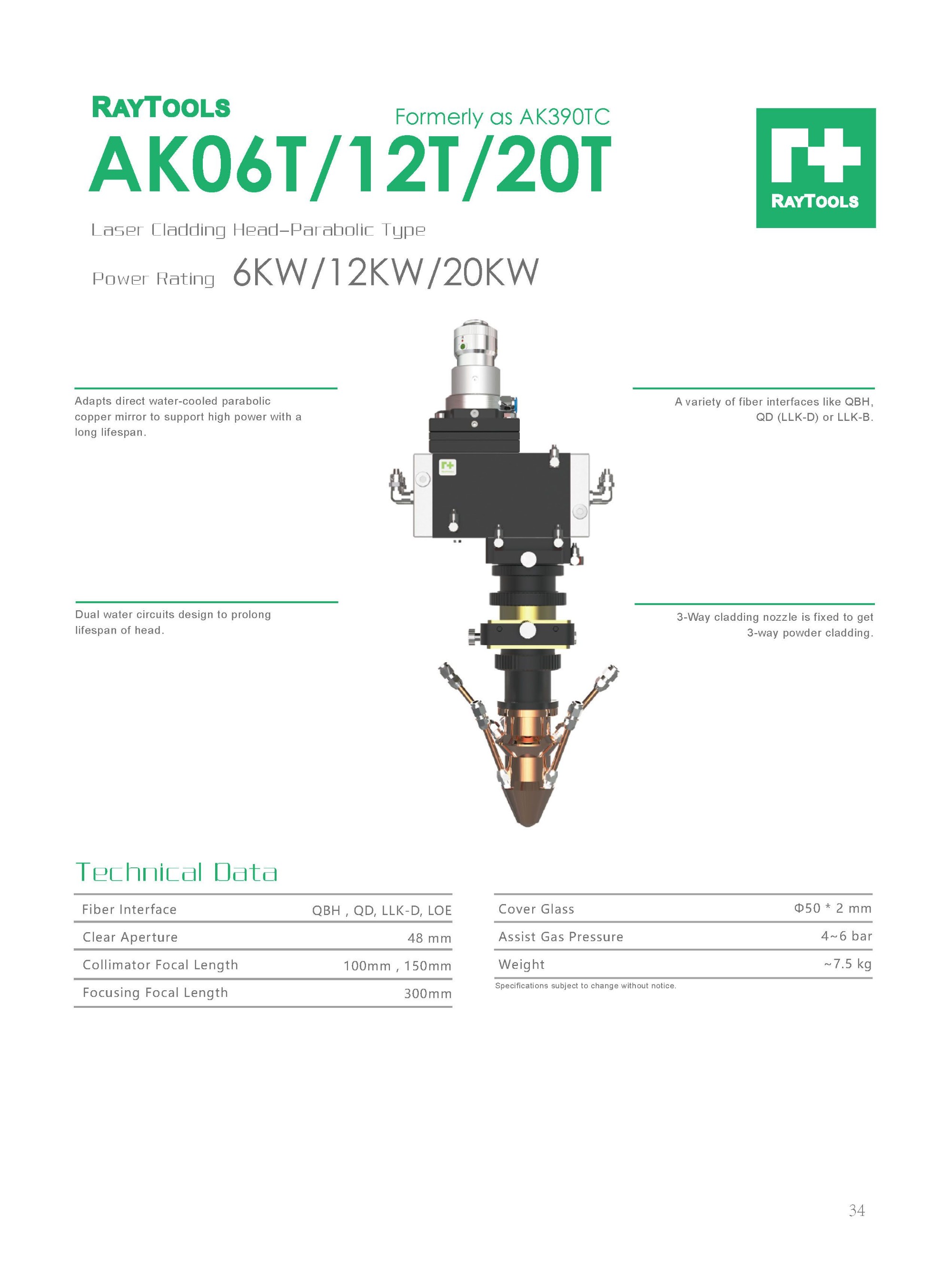

  • AK06T/12T/20T Laser Cladding Head (Formerly as AK390TC)

    Adapts direct water-cooled parabolic copper mirror to support high power with a long lifespan.
    Dual water circuits design to prolong lifespan of head.
    A variety of fiber interfaces like QBH, QD (LLK-D) or LLK-B.
    구리 미러를 개조하여 직접 냉각해 긴 수명으로 고출력을 지원합니다.
    2중 수냉 회로는 헤드의 수명을 연장하도록 설계되었습니다.
    QBH, QD(LLK-D) 또는 LLK-B와 같은 다양한 Fiber 인터페이스.
    Wavelength 1070nm
    Fiber Interface QBH, QD(LLK-D), LOE
    Power Rating 6000W / 12000W / 20000W
    Collimation Length 100mm / 150mm
    Focusing Length 300mm
    Powder Aggregate Size 1 - 3mm Optional
    Weight ~ 5.5kg

상세정보

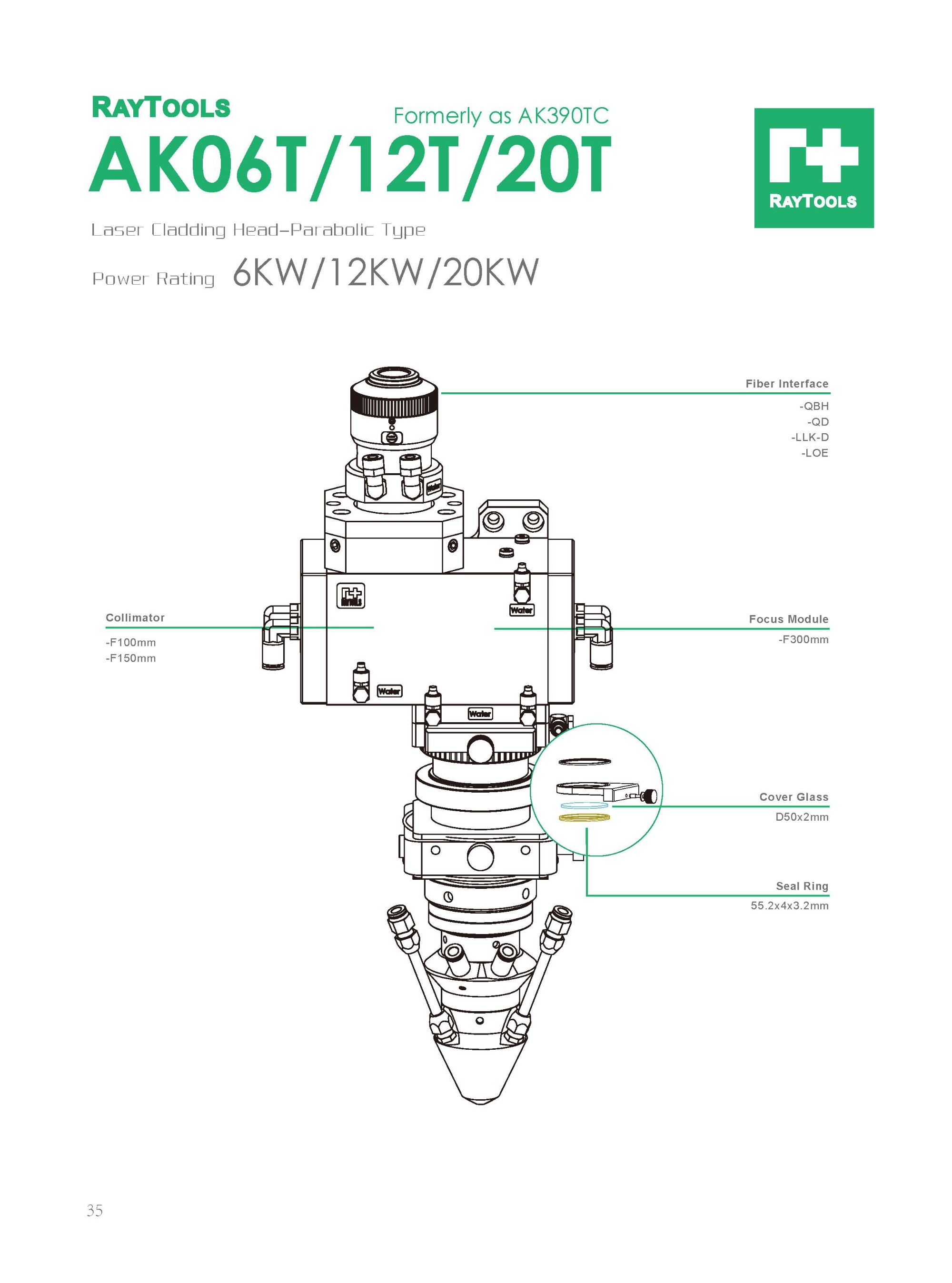

ak06 2.jpg
