Beam Delivery

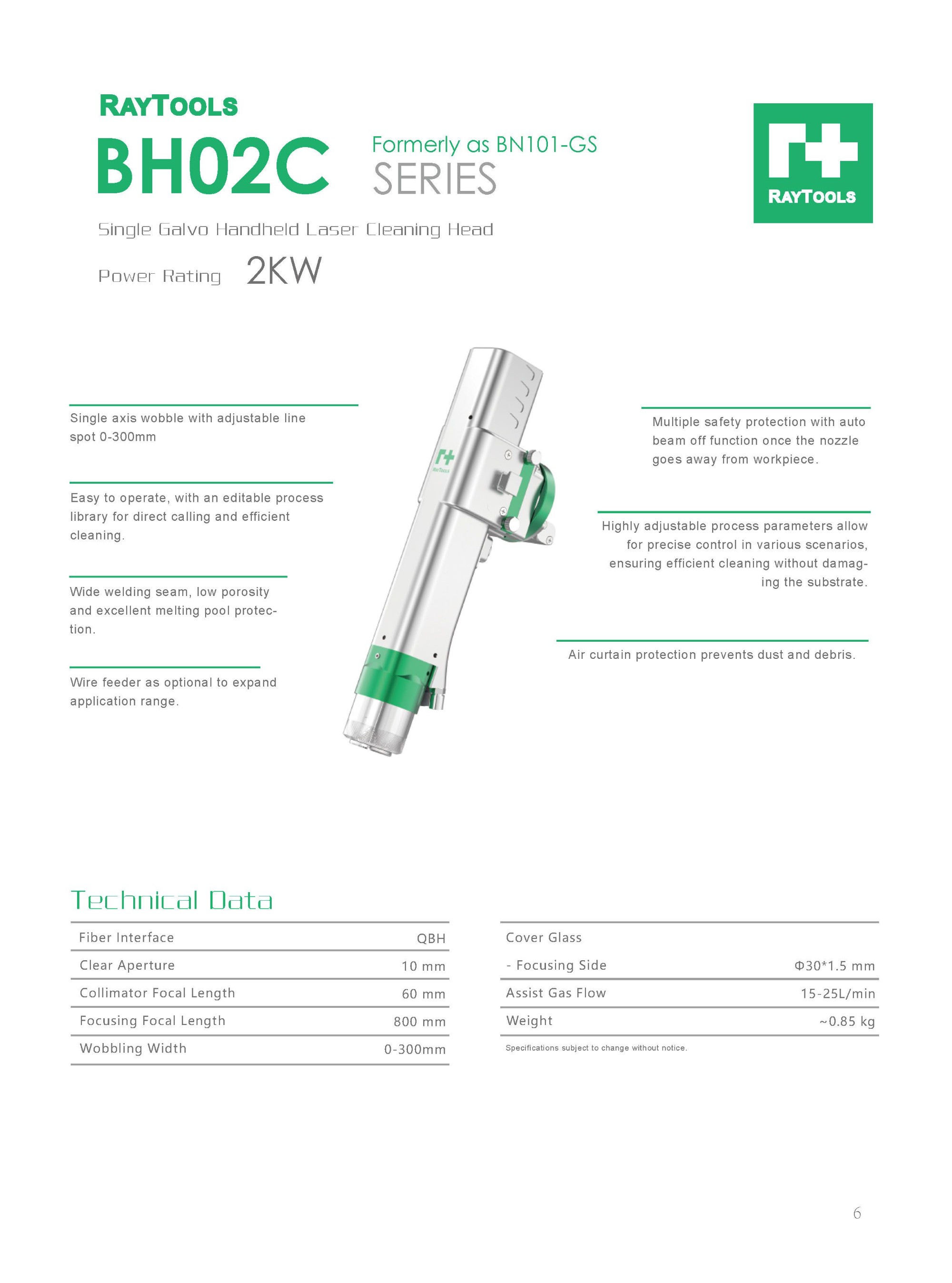

  • BH02C Single Galvo Handheld Laser Cleaning Head (Formerly as BN101-GS)

    Single axis wobble with adjustable line spot 0-300mm
    Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
    Easy to operate, with an editable process library for direct calling and efficient cleaning.
    Highly adjustable process parameters allow for precise control in various scenarios, ensuring efficient cleaning without damaging the substrate.
    Wire feeder as optional to expand application range.
    Air curtain protection prevents dust and debris.
    조정 가능한 라인 스팟이 0-300mm인 단일 축 Wobble
    노즐이 공작물에서 벗어나면 자동 빔 오프 기능으로 다중 안전 보호 기능을 제공합니다.
    조작이 쉽고, 편집 가능한 프로세스 라이브러리를 통해 직접 호출할 수 있으며 효율적인 클리닝이 가능합니다.
    고도로 조정 가능한 공정 매개변수는 다양한 시나리오에서 정밀한 제어를 가능하게 하여 기판을 손상시키지 않으면서 효율적인 클리닝을 보장합니다.
    와이어 피더는 선택 사항으로 적용 범위를 확장할 수 있습니다.
    에어 커튼 보호 기능은 먼지와 이물질을 방지합니다.
    Wavelength 1080nm
    Fiber Interface QBH
    Power Rating 2000W
    Collimation Length 60mm
    Focusing Length 800mm
    Wobbling Width 0 - 300mm
    Weight ~ 0.85kg

상세정보

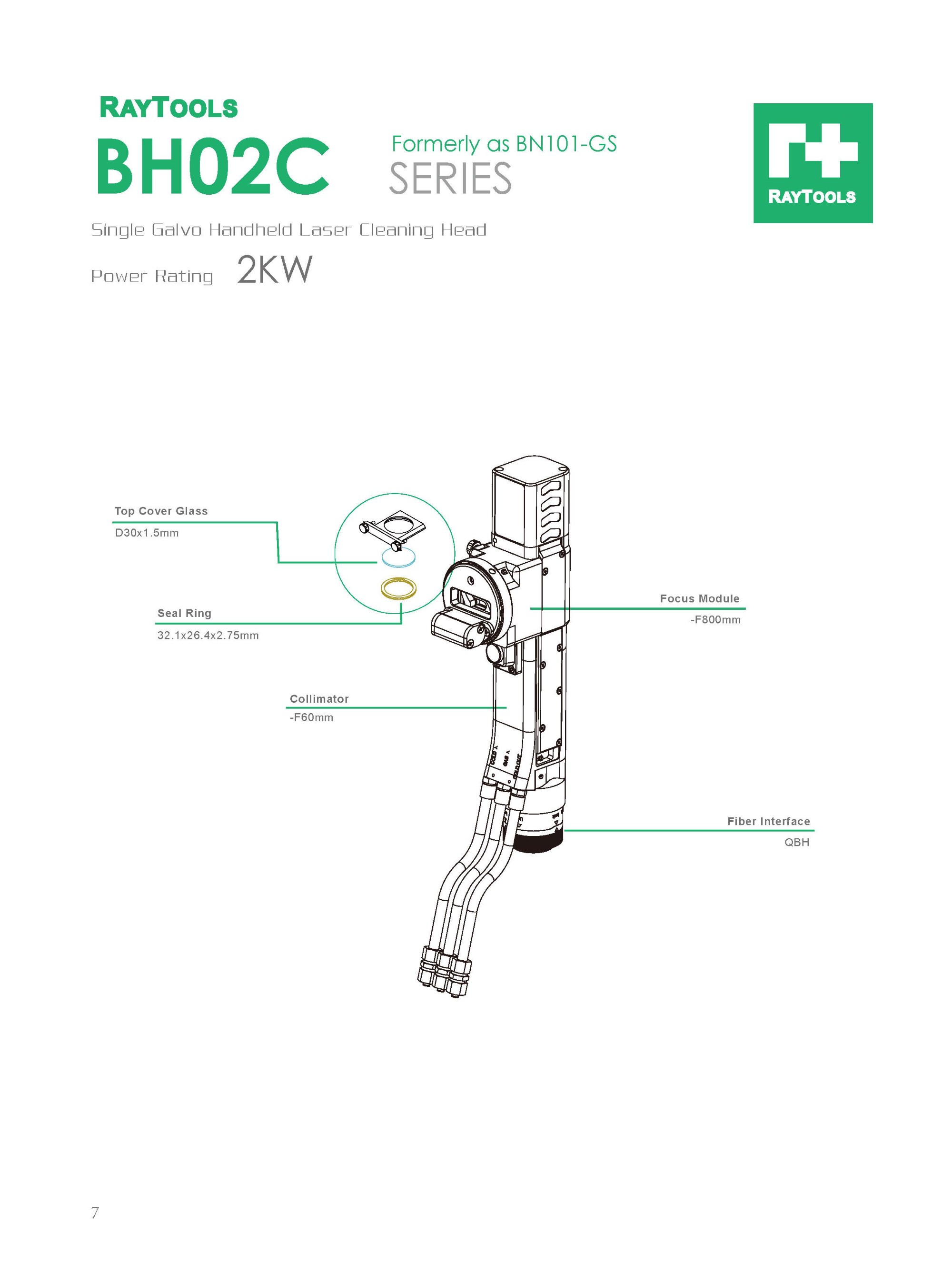

bh02c 2.jpg
