Beam Delivery

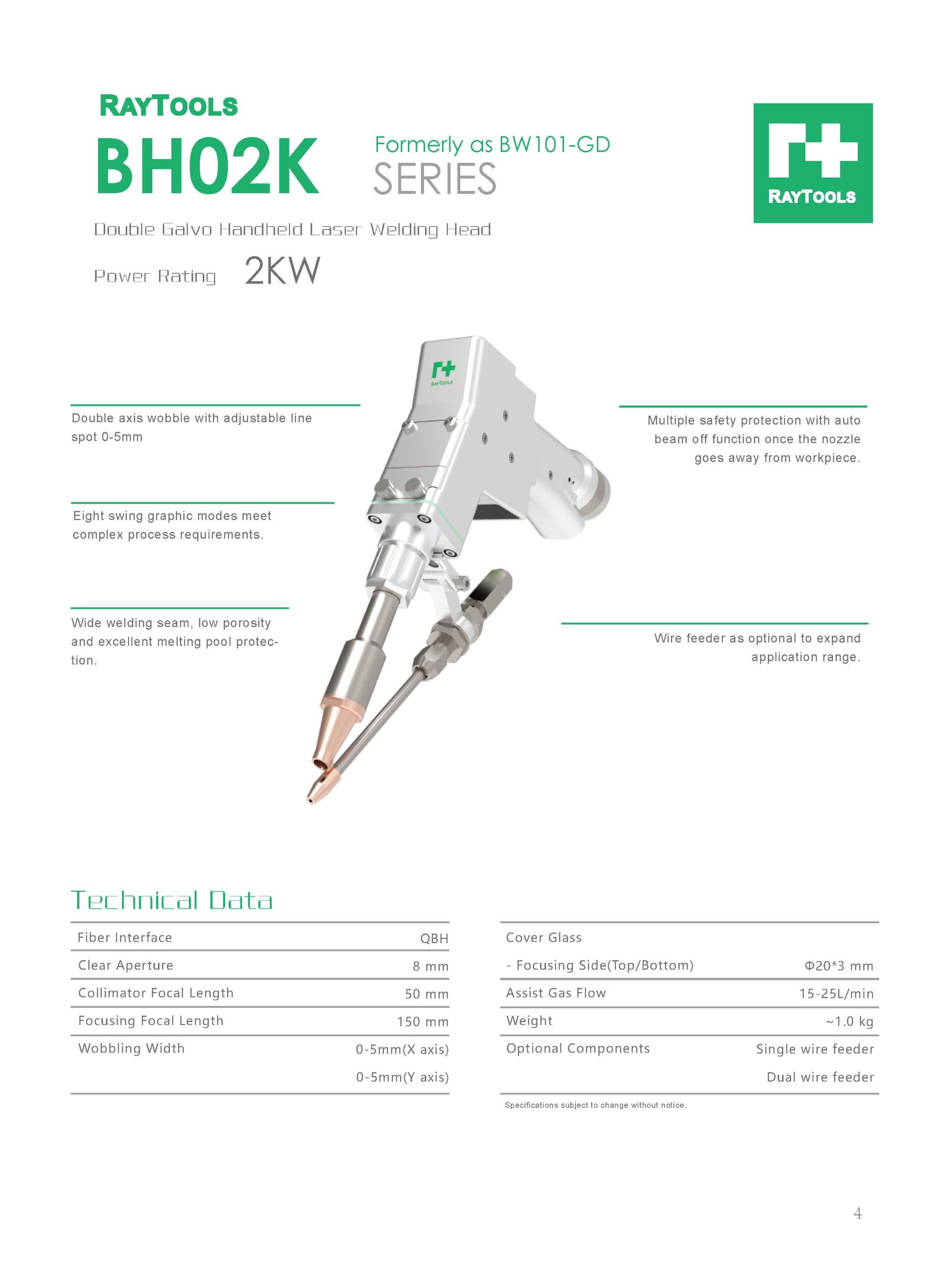

  • BH02K Double Galvo Laser Welding Head (Formerly as BW101-GD)

    Double axis wobble with adjustable line spot 0-5mm
    Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
    Eight swing graphic modes meet complex process requirementsWide welding seam, low porosity and excellent melting pool protection.
    Wire feeder as optional to expand application range.
    조정 가능한 라인 스팟이 0-5mm인 이중 축 Wobble
    노즐이 공작물에서 벗어나면 자동 빔 오프 기능으로 다중 안전 보호 기능을 제공합니다.
    여덟 가지 스윙 그래픽 모드는 복잡한 공정 요구 사항을 충족합니다.
    와이어 피더는 선택 사항으로 적용 범위를 확장할 수 있습니다.
    Wavelength 1080nm
    Fiber Interface QBH
    Power Rating 2000W
    Collimation Length 50mm
    Focusing Length 150mm
    Optional Tip Single wire feeder / Dual wire feeder
    Weight ~ 1.0kg

상세정보

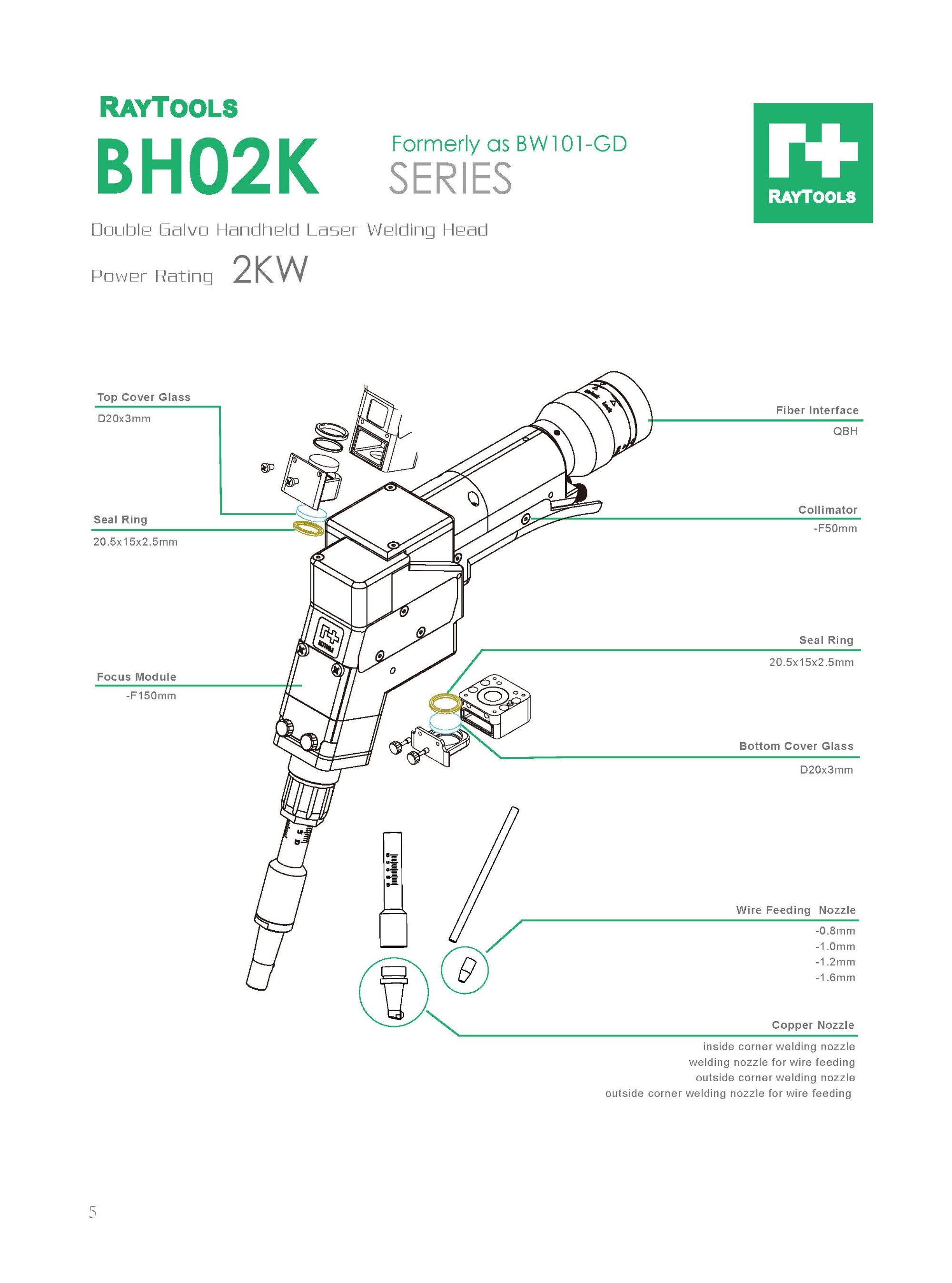

bh02 2.jpg
